Carpet Retaining Clip

ABS · Nylon · PETG1 FILECC-BY-SAInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Carpet Retaining Clip
OEM: —
APPLICATION: Wrangler JK

Loading 3D viewer...

CARGO ID · CJ-3D / 0776QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

1 PLATE

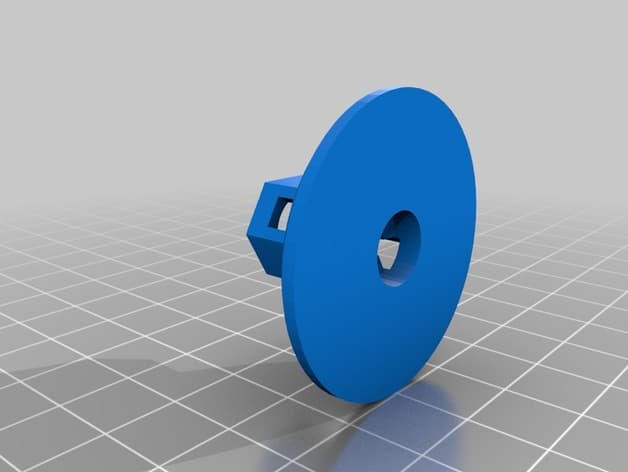

PLATE 01 / 01No caption recorded

Build sheet

MAN-0776

[01]carpet_pin.STLcarpet_pin.STL.STL
[02]Bounding box38.100 × 38.086 × 19.050 mm
[03]Volume4,346.155 mm³

Field notes

BY ADAM HANDLER (NHSE)

Replacement carpet retaining clip for the Wrangler JK. The creator identifies six locations under the dash and seats where this printed fastener replaces a missing clip.

View original source ↗
