Center-Console Cupholder Liners

TPUMULTI-PART2 FILESCC-BYInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Center-Console Cupholder Liners
OEM: —
APPLICATION: Wrangler YJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0730QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-0730

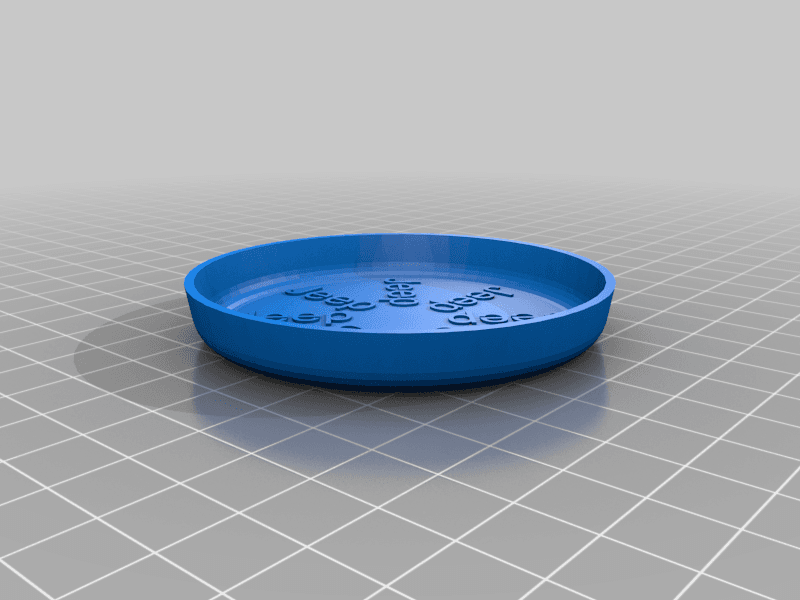

[01]YJ_CUPHOLDER_CIRCLE.stlYJ_CUPHOLDER_CIRCLE.stl.STL

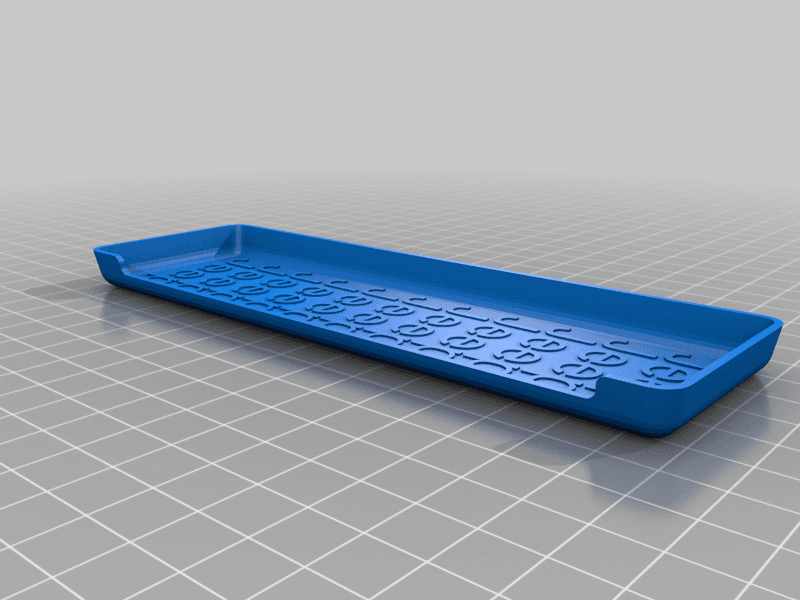

[02]YJ_CUPHOLDER_RECT.stlYJ_CUPHOLDER_RECT.stl.STL
[03]Bounding box228.960 × 70.921 × 10.000 mm
[04]Volume23,045.322 mm³

Field notes

BY ERICH P (5DOT5SIX)

Separate circular and rectangular flexible liners that replace the original rubber center-console insert without print supports. The physical photograph documents the original one-piece texture and layout.

View original source ↗
