Courtesy-Light Switch Hold-Open Clip

ABS · Nylon · PETG1 FILECC-BYElectrical

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Courtesy-Light Switch Hold-Open Clip
OEM: —
APPLICATION: Wrangler YJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0729QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-0729

[01]YJ_SWITCH_CLIP.stlYJ_SWITCH_CLIP.stl.STL
[02]Bounding box13.000 × 11.321 × 7.000 mm
[03]Volume701.716 mm³

Field notes

BY ERICH P (5DOT5SIX)

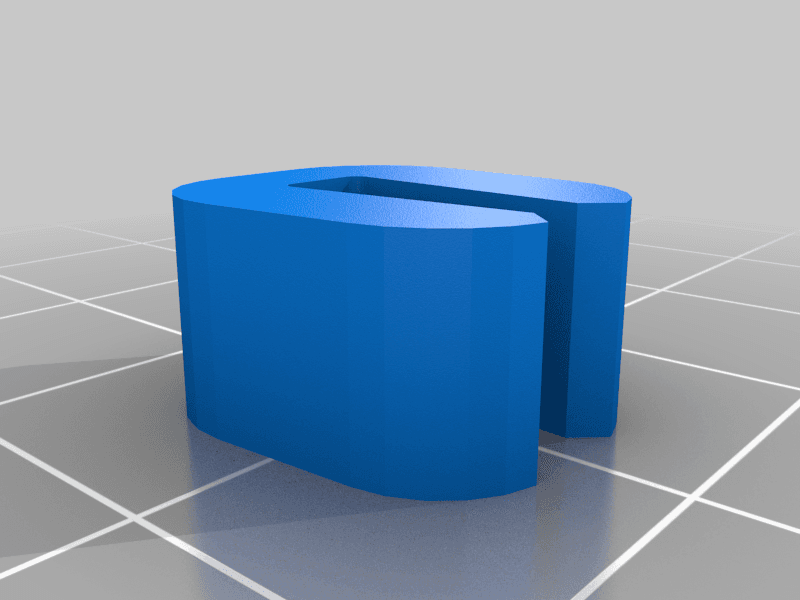

Slip-on clip that holds the door courtesy-light switch open so the interior lights remain off when the doors are removed. It was designed around the pictured replacement switch.
