Dashboard Vent and Vane Set

REPLACES OEM5DP54TAZ · 5DP55TAZ · 5FS10TAZ

ABS · Nylon · PETGMULTI-PART9 FILESPublic DomainDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Dashboard Vent and Vane Set
OEM: 5DP54TAZ, 5DP55TAZ, 5FS10TAZ
APPLICATION: Wrangler TJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0774QTY 9 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-0774

[01]Jeep_Side_Vent_Vane_center_v10.stlJeep_Side_Vent_Vane_center_v10.stl.STL
[02]Jeep_Side_Vent_Vane_no_slot_v3.stlJeep_Side_Vent_Vane_no_slot_v3.stl.STL
[03]Jeep_Side_Vent_Vane_v6.stlJeep_Side_Vent_Vane_v6.stl.STL
[04]Jeep_Vane_middle_v11.stlJeep_Vane_middle_v11.stl.STL
[05]Jeep_Vane_v6.stlJeep_Vane_v6.stl.STL
[06]Jeep_Vent_v9.stlJeep_Vent_v9.stl.STL
[07]Side_Vent_3_v4.stlSide_Vent_3_v4.stl.STL
[08]Vent_Slider_v3.stlVent_Slider_v3.stl.STL
[09]tooth_Slider_v5.stltooth_Slider_v5.stl.STL
[10]Bounding box130.716 × 108.000 × 65.000 mm
[11]Volume65,917.611 mm³

Field notes

BY JAMES BRAUNSCHNEIDER (BRAUNSCJ)

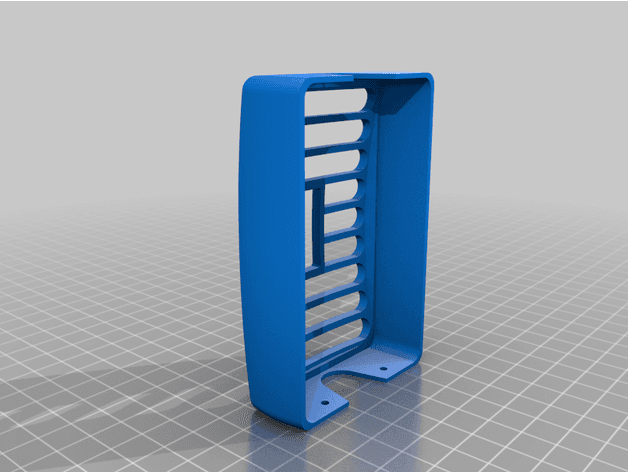

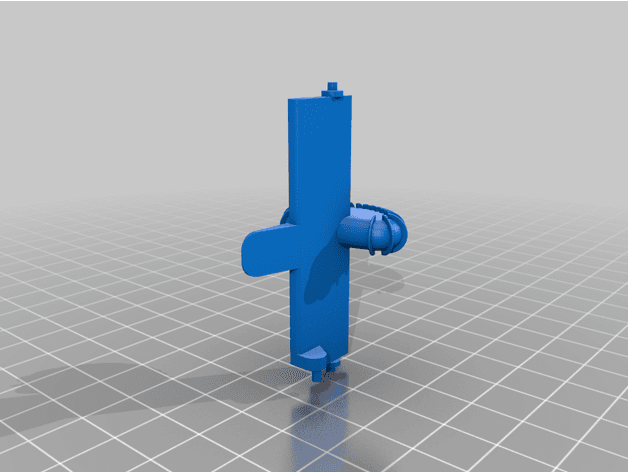

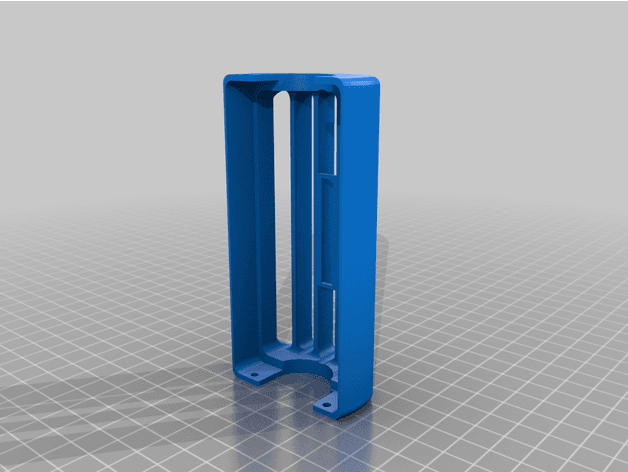

Complete repair set for the missing or cracked center and side vents in a 2002 TJ, including housings, vanes, sliders and geared control pieces. The creator printed prototypes and specifies heat-resistant material for service use.
