Door-Hinge Paint Protector

ABS · Nylon · PETG1 FILECC-BYBody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

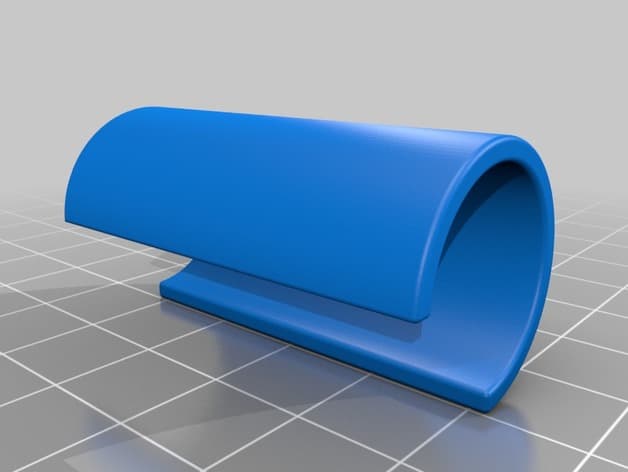

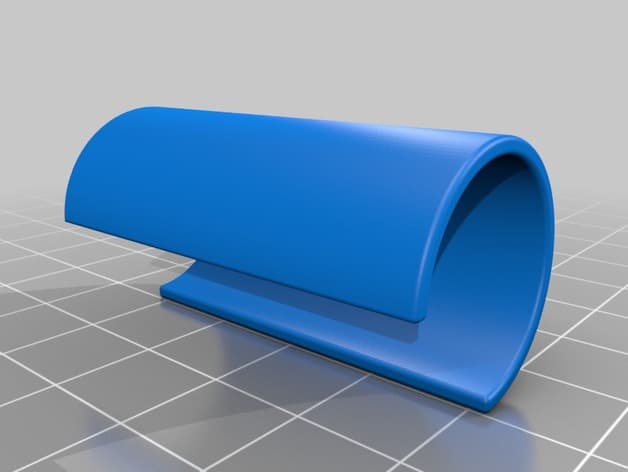

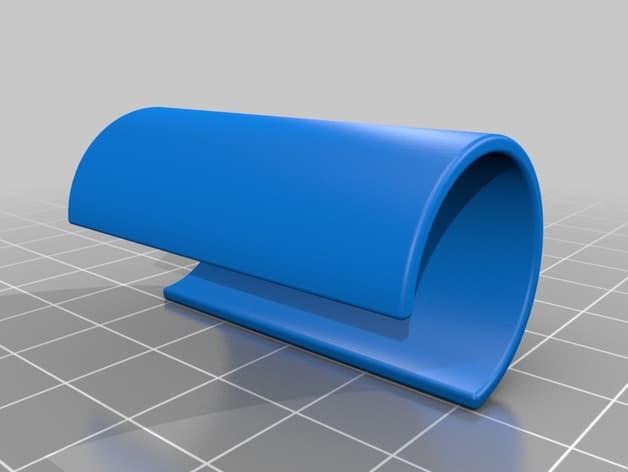

NOMENCLATURE: Door-Hinge Paint Protector
OEM: —
APPLICATION: Wrangler JK

Loading 3D viewer...

CARGO ID · CJ-3D / 0783QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-0783

[01]JK_Door_Protector_with_Bulge.stlJK_Door_Protector_with_Bulge.stl.STL
[02]Bounding box43.000 × 22.488 × 22.488 mm
[03]Volume4,218.661 mm³

Field notes

BY DYLAN LEE (THINGERMAKER)

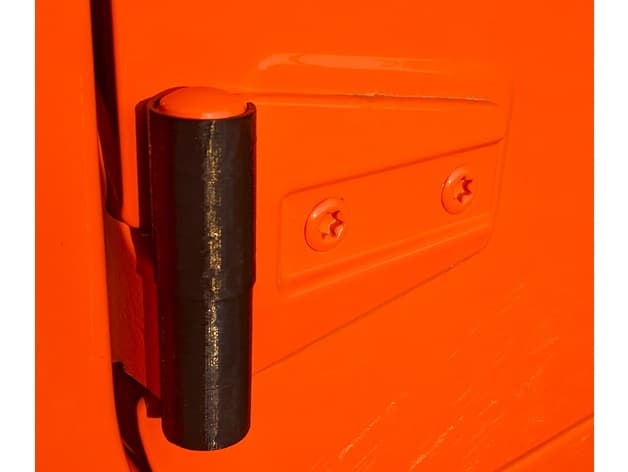

Thin snap-on protector for Wrangler JK door hinges that shields painted hinge faces from gravel impacts. This entry uses the creator's latest bulged-fit revision.
