Double-DIN Radio Fascia Blank

ABS · Nylon · PETG1 FILECC-BYDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Double-DIN Radio Fascia Blank
OEM: —
APPLICATION: Grand Cherokee WJ / WG

Loading 3D viewer...

CARGO ID · CJ-3D / 0936QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0936

[01]jeep_wj_2din_frame_to_cut.stljeep_wj_2din_frame_to_cut.stl.STL
[02]Bounding box255.000 × 162.000 × 29.700 mm
[03]Volume110,397.664 mm³

Field notes

BY DAMIAN OLAK (FAFIAN)

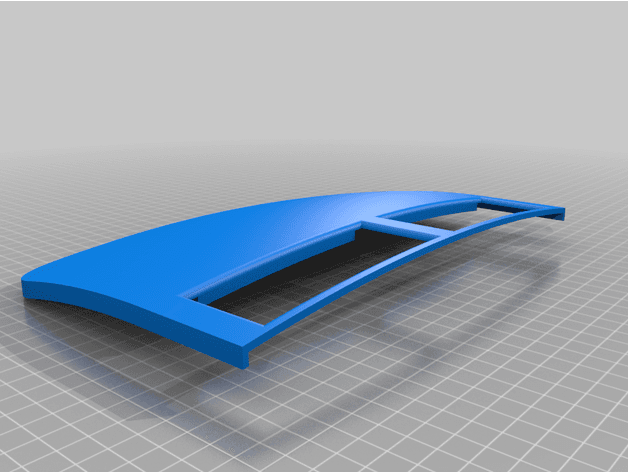

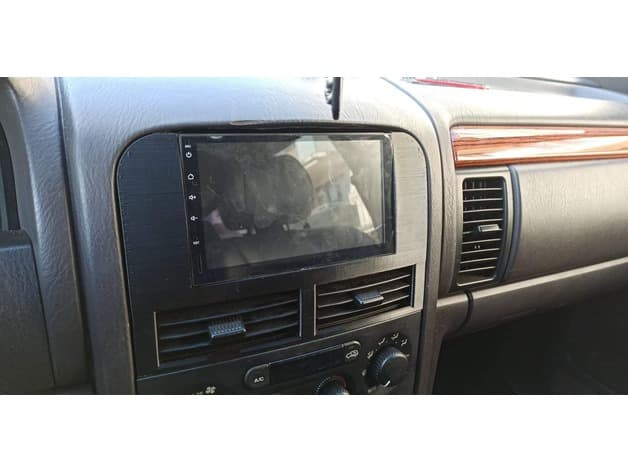

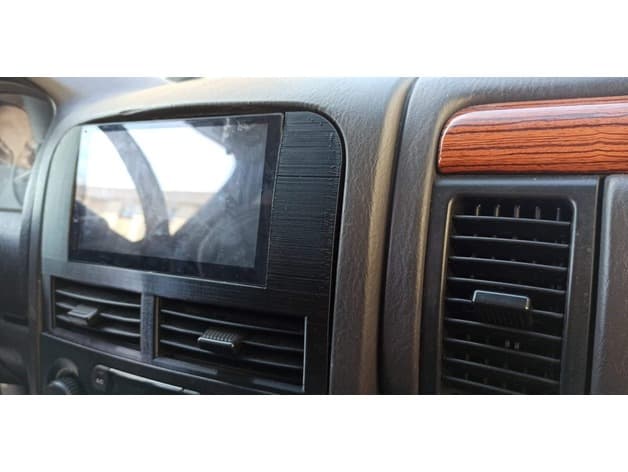

Dashboard fascia blank for fitting a double-DIN radio to a Grand Cherokee WJ or export-model WG. The user cuts the final opening for the chosen head unit; the source documents the installed fit.
