Electric Mirror Pivot Repair

ABS · Nylon · PETG1 FILECC-BYDoors

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Electric Mirror Pivot Repair
OEM: —
APPLICATION: Cherokee / Liberty XJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0831QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-0831

[01]Jeep_Mirror_V2.stlJeep_Mirror_V2.stl.STL
[02]Bounding box59.780 × 45.000 × 12.808 mm
[03]Volume10,947.397 mm³

Field notes

BY ANTHONY PROFFITT (BOXBURN)

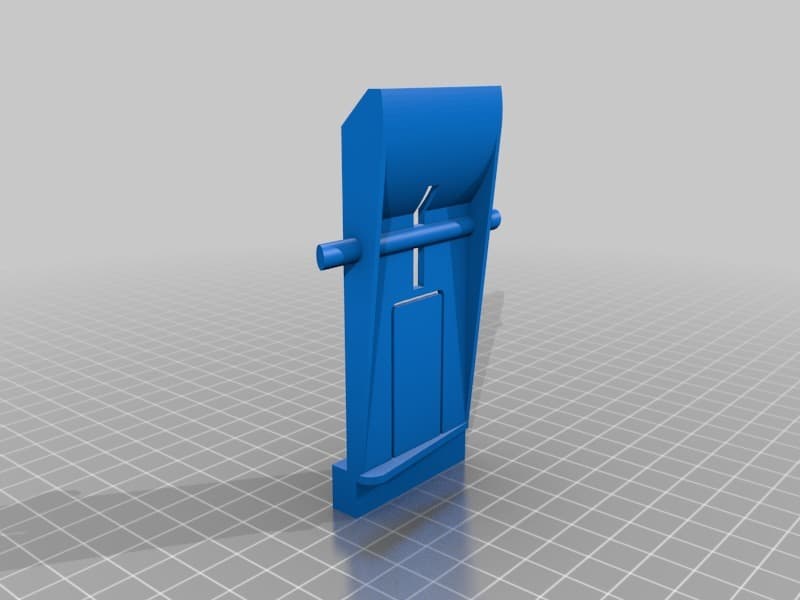

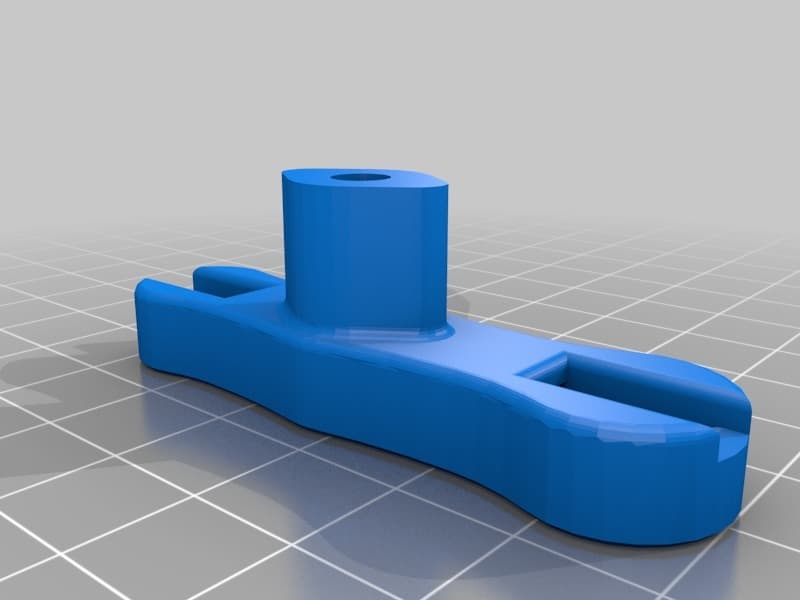

Slotted replacement for the failed plastic pivot in a Cherokee XJ electric door mirror. The slot lets the wiring pass through so the mirror does not need complete disassembly.

View original source ↗
