European LED License-Plate Light Housing

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYLights

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: European LED License-Plate Light Housing
OEM: —
APPLICATION: Wrangler TJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0735QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

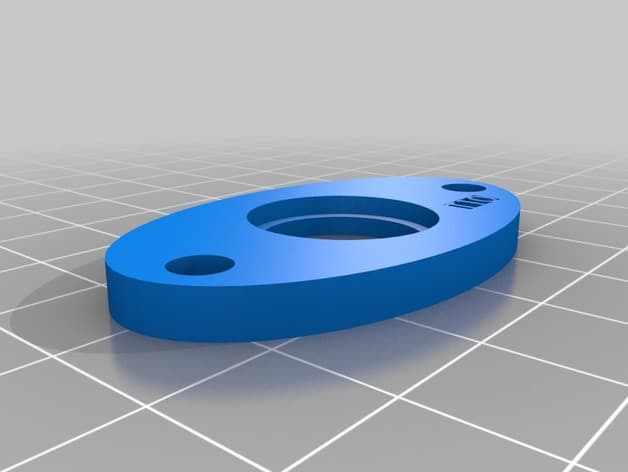

PLATE 01 / 02No caption recorded

Build sheet

MAN-0735

[01]Skyltbelysning_-_Sockelhållare.STLSkyltbelysning_-_Sockelhållare.STL.STL
[02]Skyltbelysning_-_Ytterkåpa.STLSkyltbelysning_-_Ytterkåpa.STL.STL
[03]Bounding box95.630 × 33.045 × 20.000 mm
[04]Volume7,994.683 mm³

Field notes

BY FREDRIK TELL (FTELL92)

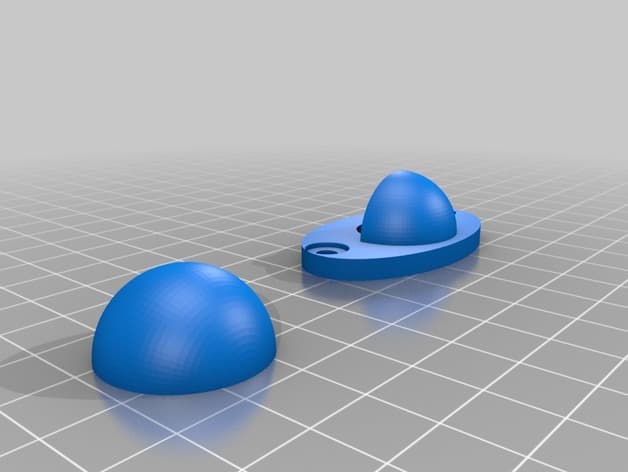

Two-piece replacement for the heat-damaged European-market license-plate light mounting and outer cover, designed around LED illumination on a 2004 Wrangler TJ.

View original source ↗
