Exposed Vacuum-Pump Cover

ABS · Nylon · PETG1 FILECC-BY-NC-SABody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Exposed Vacuum-Pump Cover
OEM: —
APPLICATION: Wrangler JK

Loading 3D viewer...

CARGO ID · CJ-3D / 0778QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

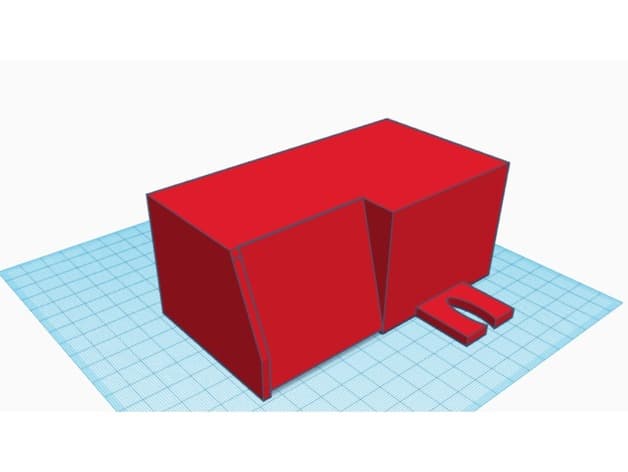

PLATE 01 / 02No caption recorded

Build sheet

MAN-0778

[01]Jeep_Vacuum_Cover_2.stlJeep_Vacuum_Cover_2.stl.STL
[02]Bounding box131.000 × 123.000 × 55.000 mm
[03]Volume136,377.576 mm³

Field notes

BY IGOR KOVTUN (IGS1)

Protective cover for the exposed front vacuum pump on a 2016 Wrangler JK after installation of an open aftermarket bumper. Check bumper clearance before use.
