Flexible Window Armrest Extender

TPU1 FILECC-BY-NCDoors

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Flexible Window Armrest Extender
OEM: —
APPLICATION: Gladiator JT

Loading 3D viewer...

CARGO ID · CJ-3D / 0979QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-0979

[01]jeep-door-armrest-pad-slot.stljeep-door-armrest-pad-slot.stl.STL
[02]Bounding box157.000 × 83.491 × 36.001 mm
[03]Volume113,308.272 mm³

Field notes

BY DIRKPIGGLER

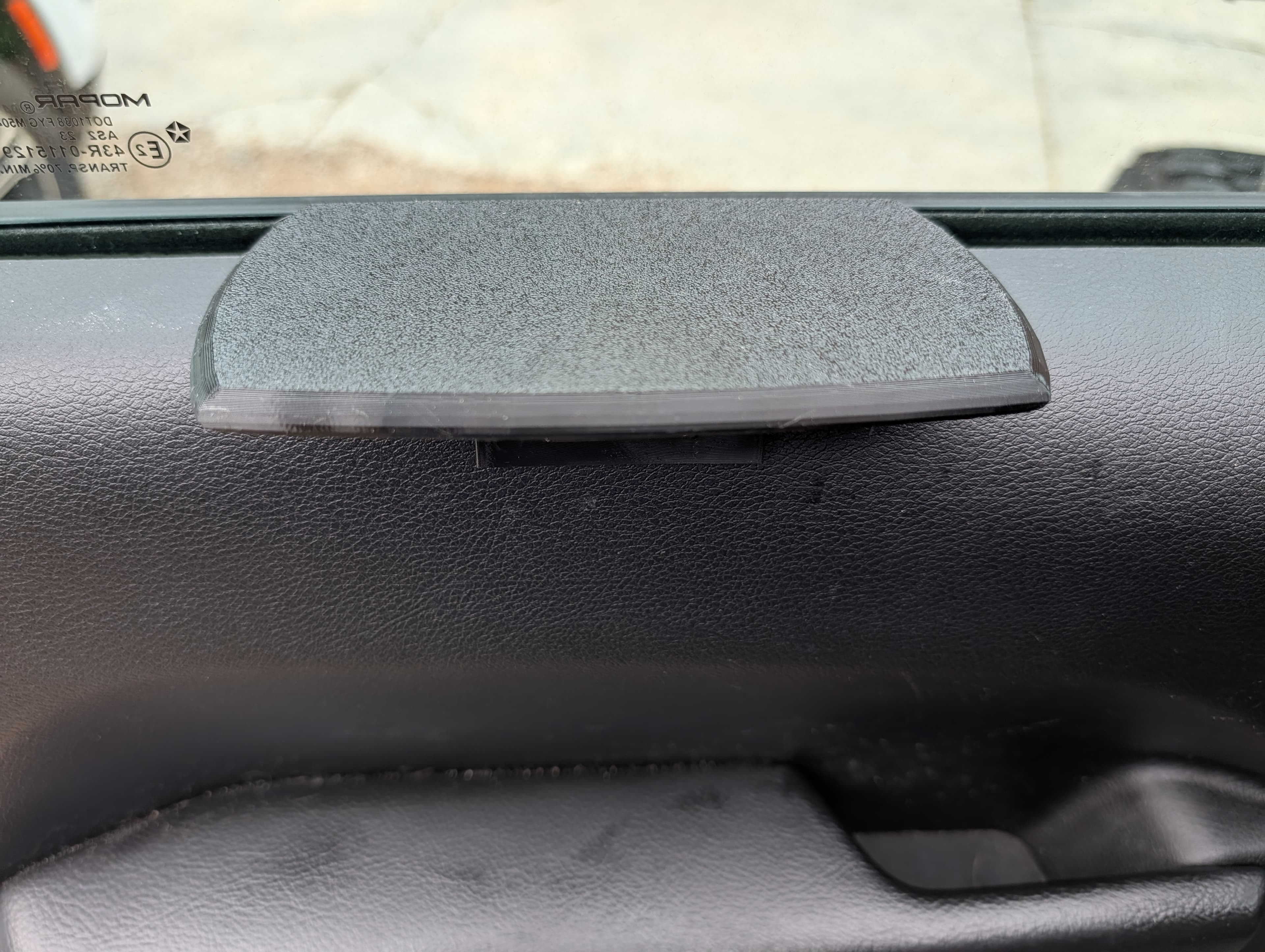

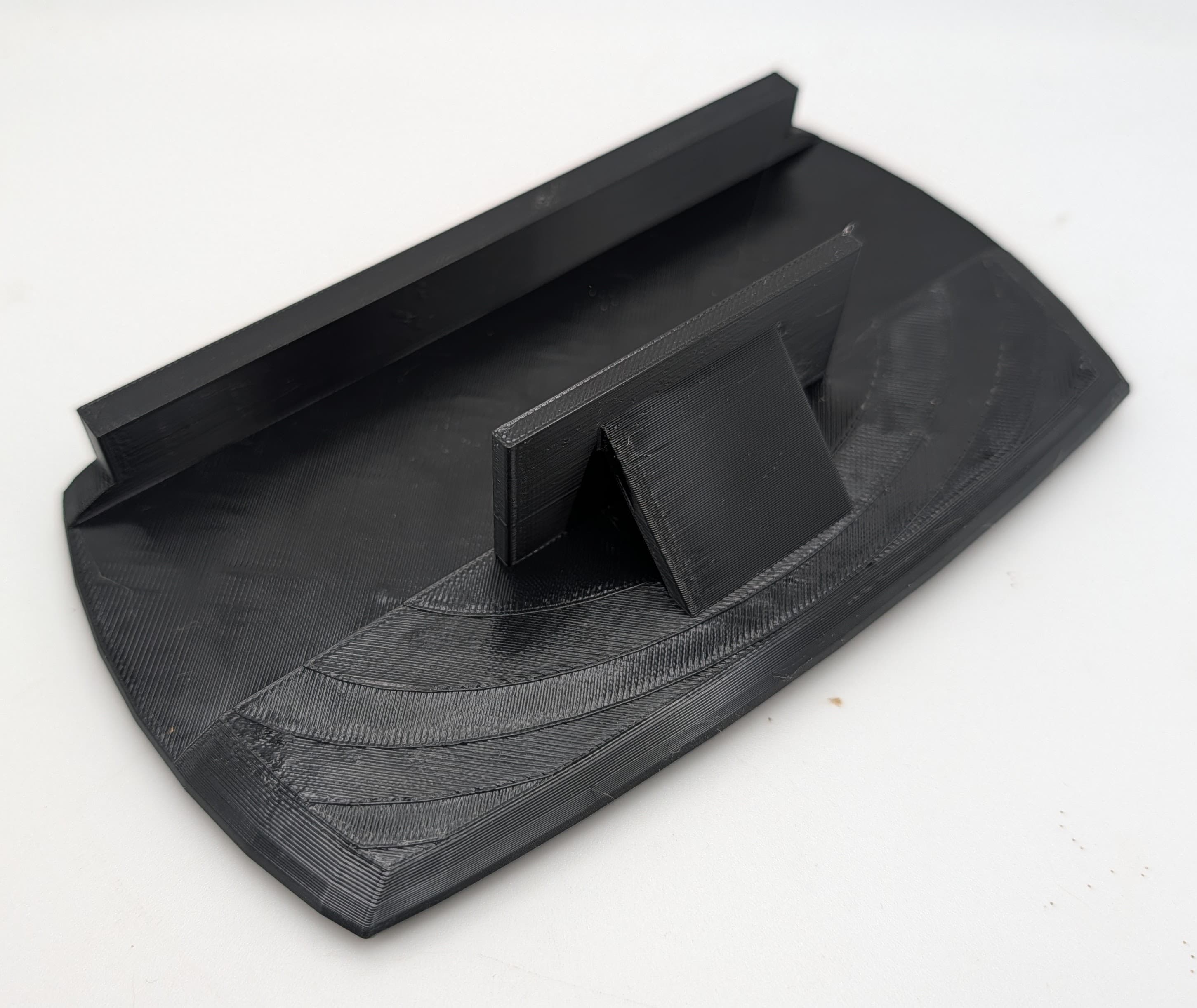

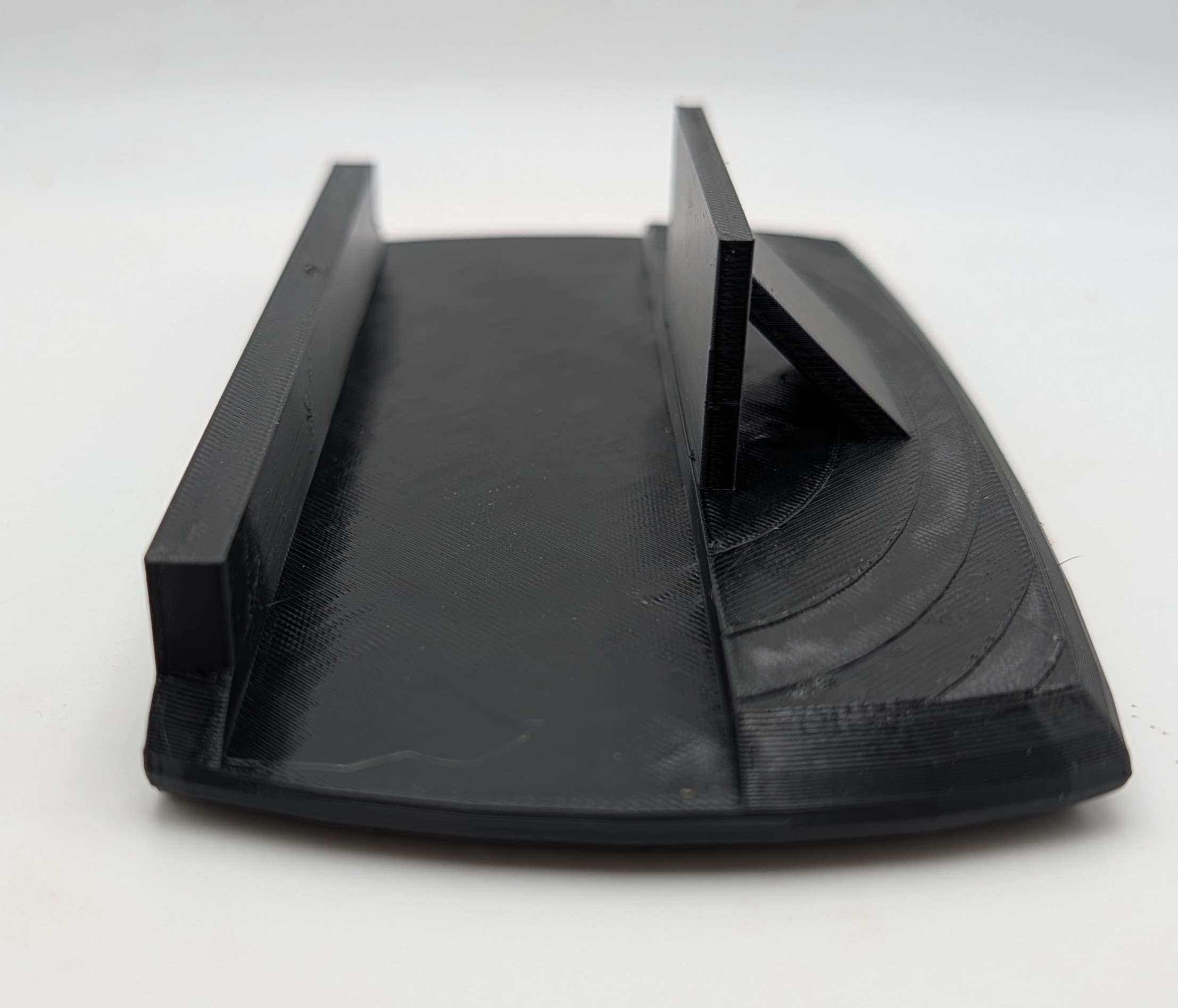

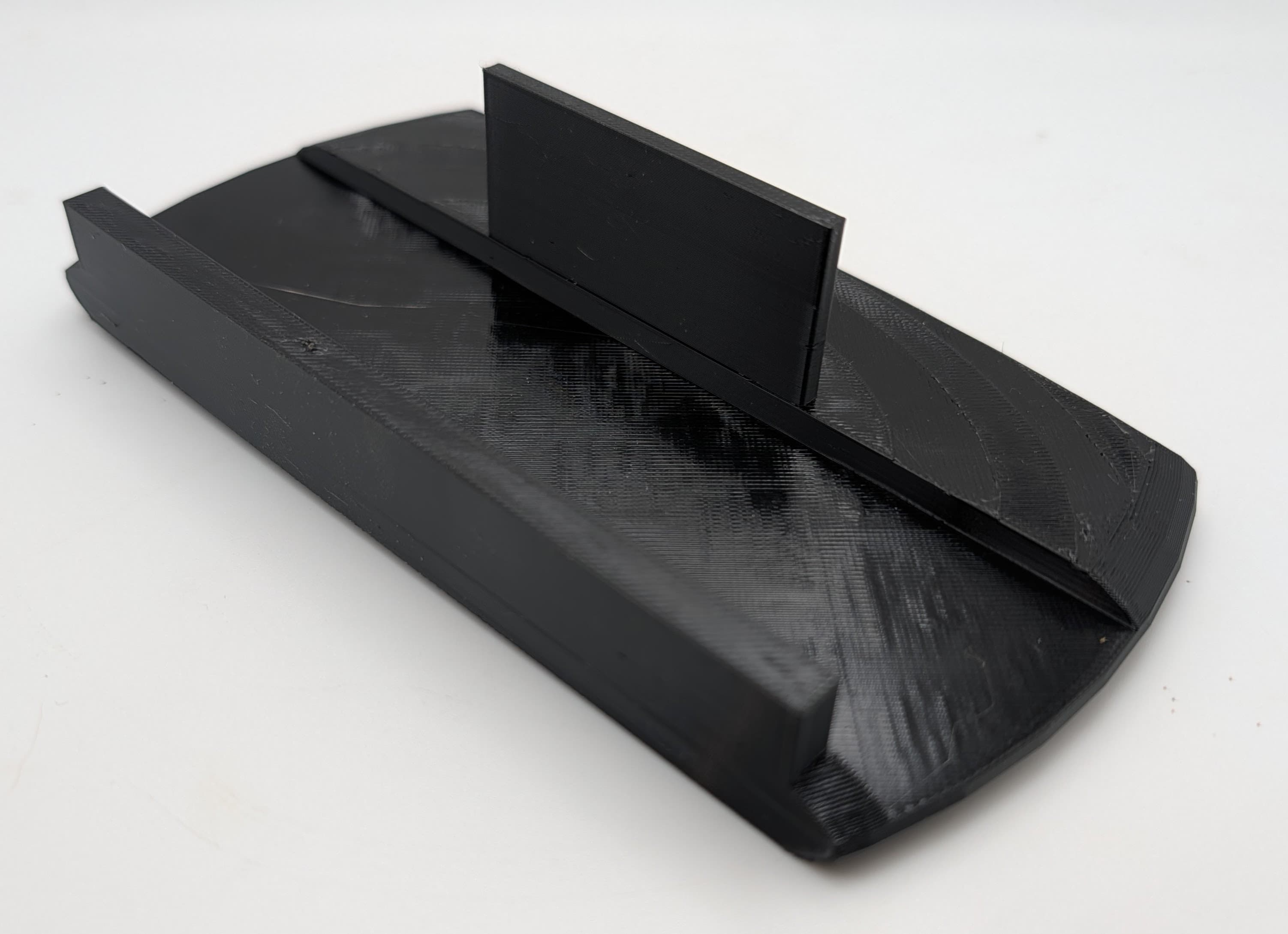

Soft slip-on window-sill armrest for a Gladiator JT door card. The flexible pad remains in place while the door and window operate, and its low profile is documented in installed and uninstalled physical views.
