Front-Bumper Retainer Clip

REPLACES OEM6505361AA

ABS · NylonMULTI-PART2 FILESCC-BY-NC-SABody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

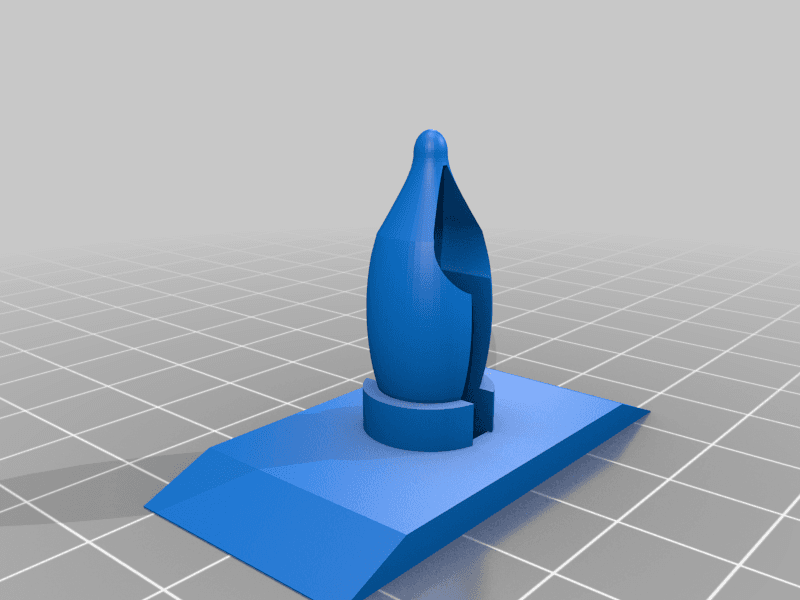

NOMENCLATURE: Front-Bumper Retainer Clip
OEM: 6505361AA
APPLICATION: Grand Cherokee WJ / WG

Loading 3D viewer...

CARGO ID · CJ-3D / 0944QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-0944

[01]6505361AA_Retainer.stl6505361AA_Retainer.stl.STL

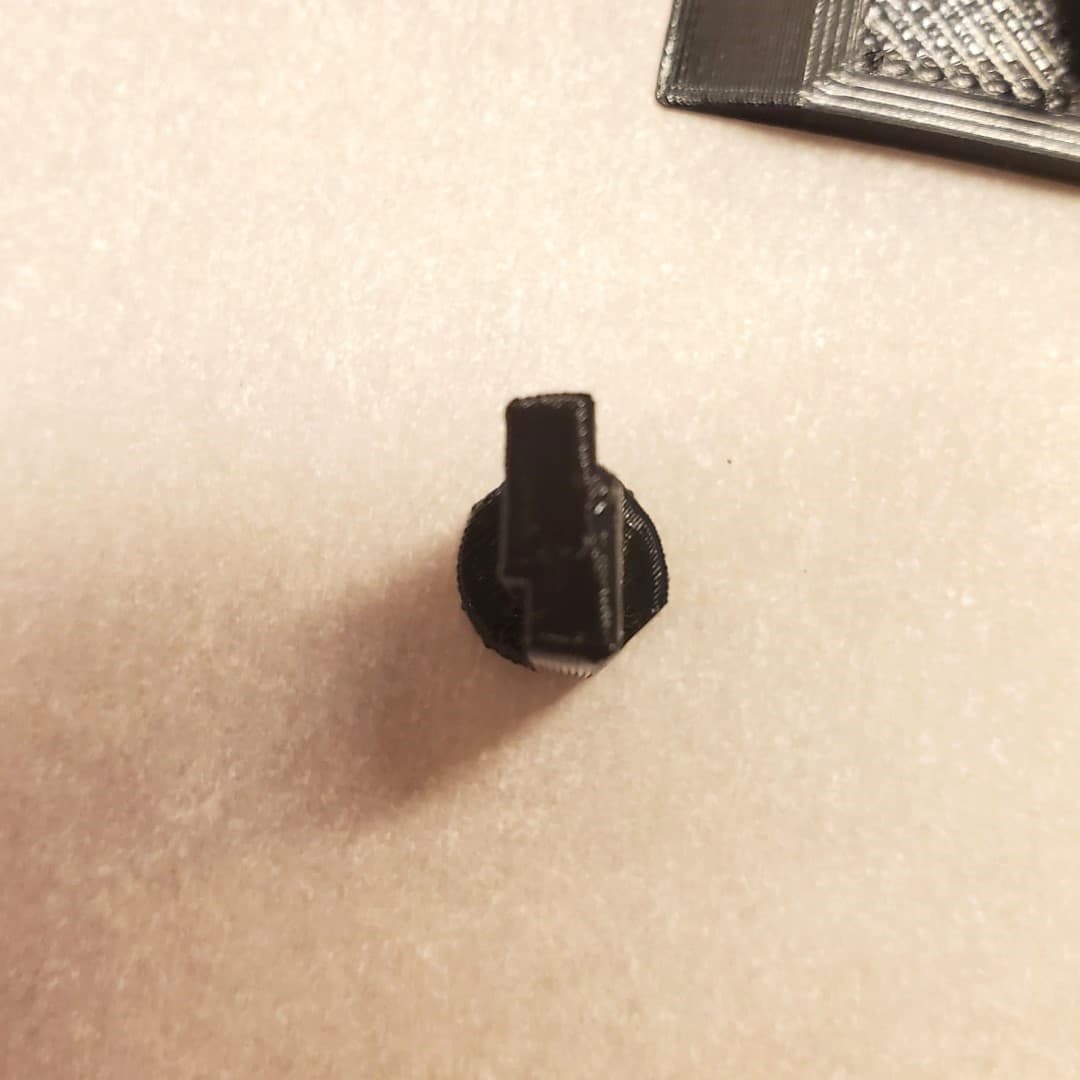

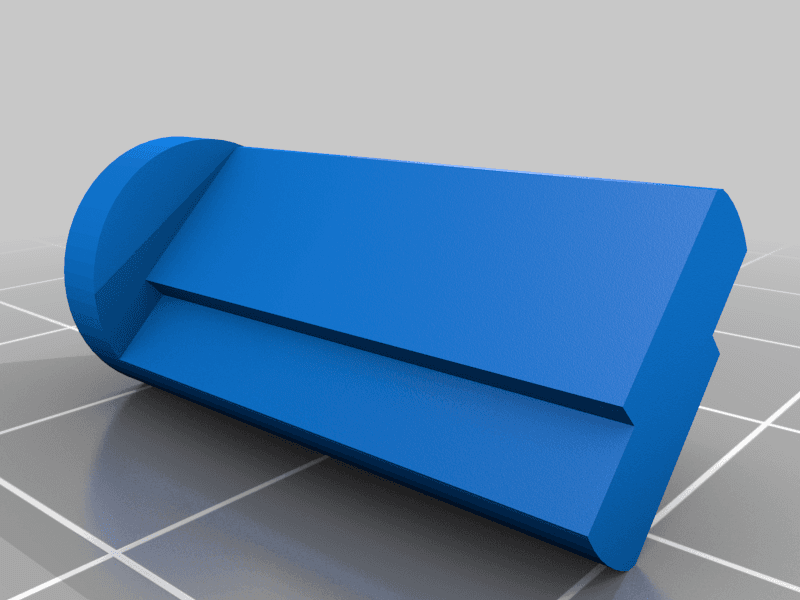

[02]6505361AA_Insert.stl6505361AA_Insert.stl.STL
[03]Bounding box47.458 × 40.486 × 23.000 mm
[04]Volume4,507.211 mm³

Field notes

BY JOHN UNDERWOOD (IRONJOHNHENRY)

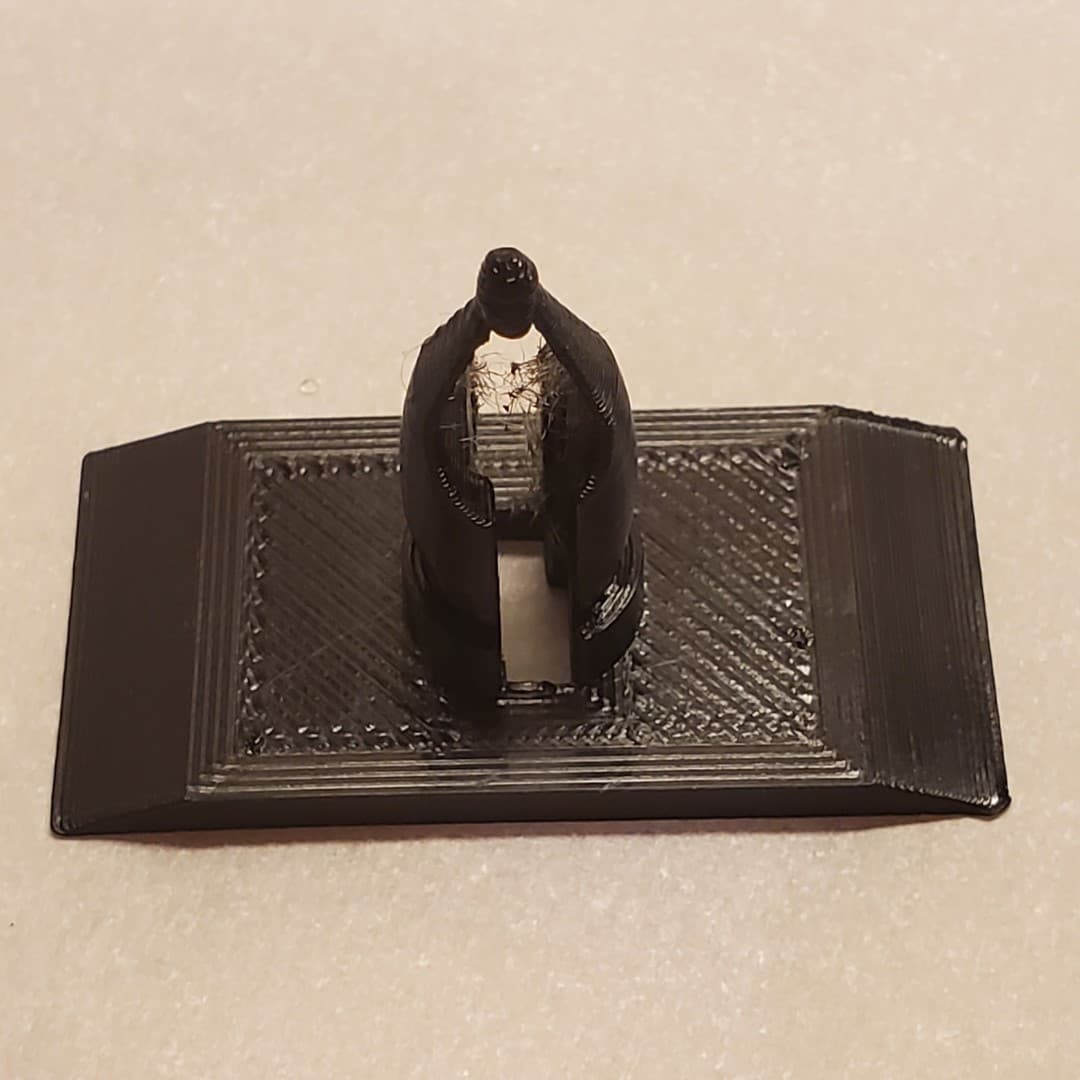

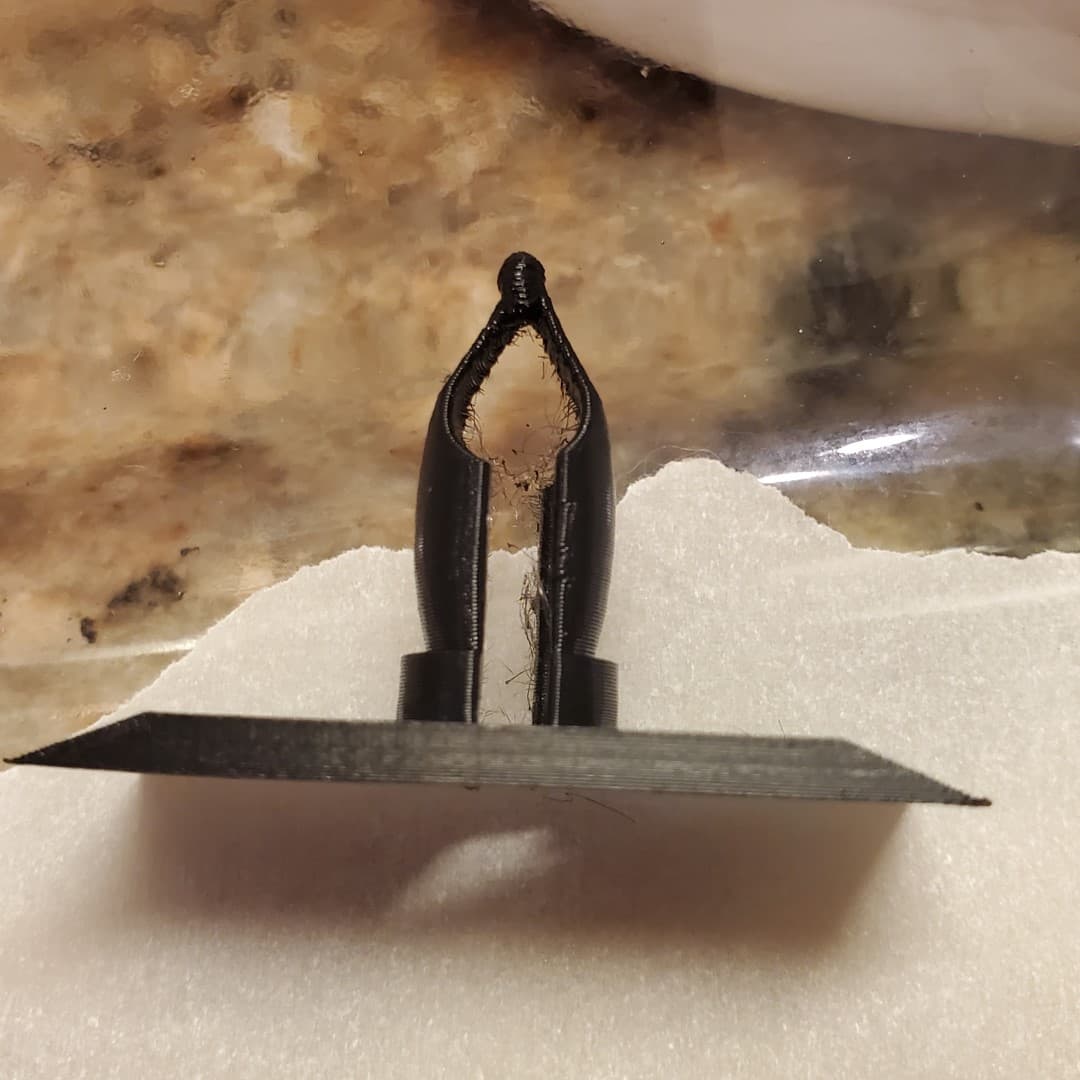

Two-piece front-bumper retainer modeled from the fastener on a 2000 Grand Cherokee WJ. The creator verified the installed function and oriented the insert for layer strength.
