Front-Fender Auxiliary-Light Bracket

ABS · Nylon1 FILECC-BY-NCLights

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Front-Fender Auxiliary-Light Bracket
OEM: —
APPLICATION: Grand Cherokee ZJ / ZG

Loading 3D viewer...

CARGO ID · CJ-3D / 0926QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-0926

[01]zj-jeep-guard-light-bracket.stlzj-jeep-guard-light-bracket.stl.STL
[02]Bounding box86.149 × 65.772 × 40.003 mm
[03]Volume16,468.829 mm³

Field notes

BY DANIEL

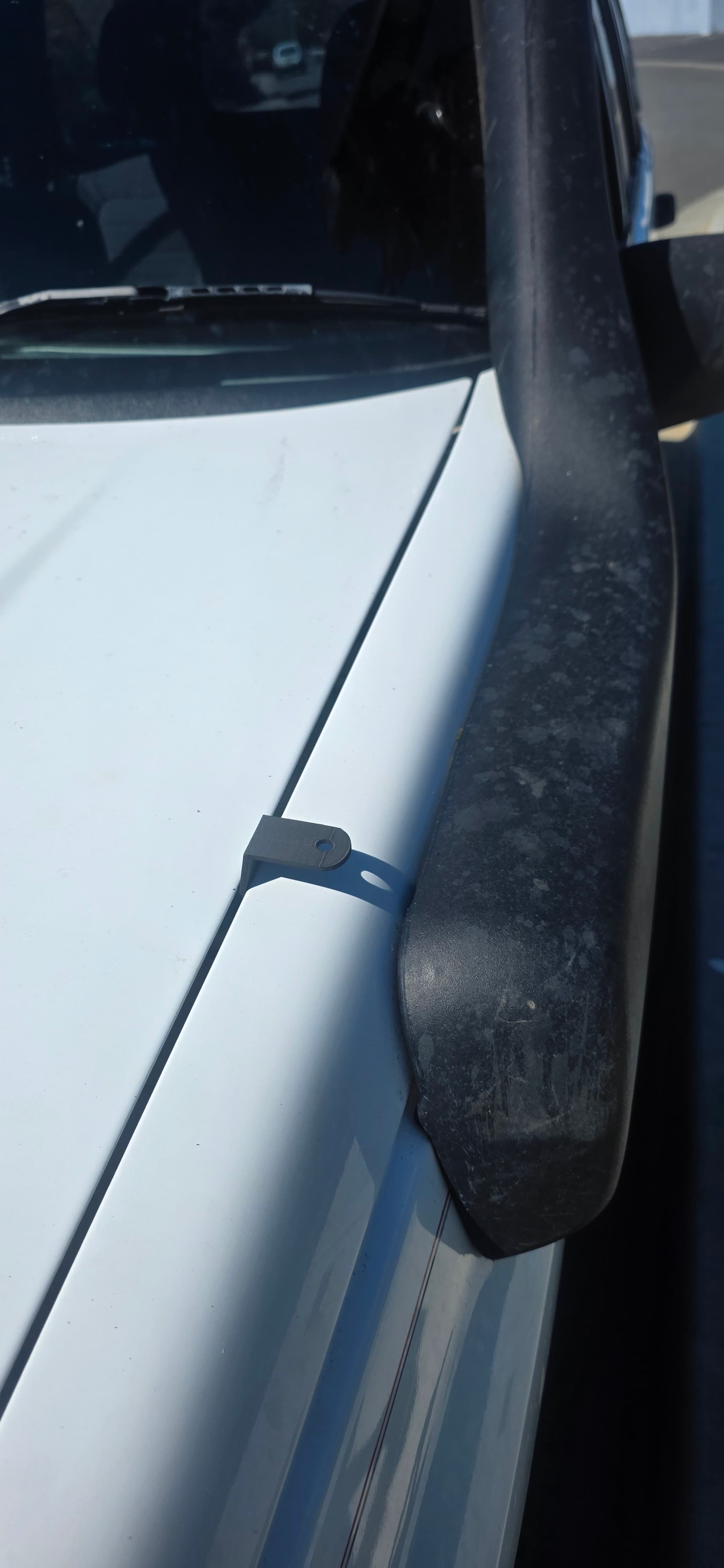

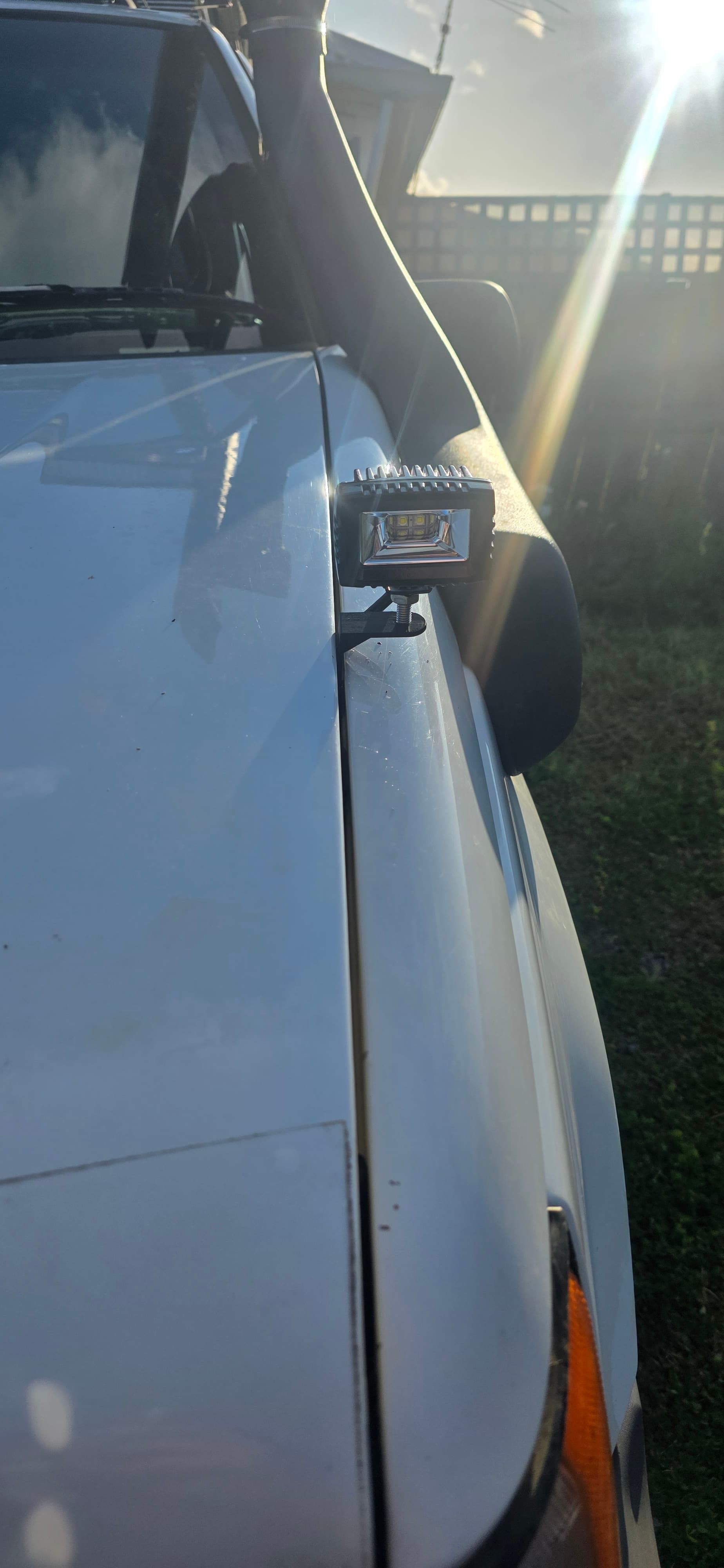

Bolt-on bracket developed for mounting a three-inch auxiliary light above the front fender of a Grand Cherokee ZJ. The source documents the installed bracket from three angles.
