H11 Headlight-Bulb Wrench

ABS · Nylon1 FILECC-BYMechanical

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: H11 Headlight-Bulb Wrench
OEM: —
APPLICATION: Grand Cherokee WK2

Loading 3D viewer...

CARGO ID · CJ-3D / 0963QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0963

[01]H11_Wrench_1.stlH11_Wrench_1.stl.STL
[02]Bounding box41.900 × 26.400 × 25.100 mm
[03]Volume6,888.286 mm³

Field notes

BY RICH BECK (MAKERBECK)

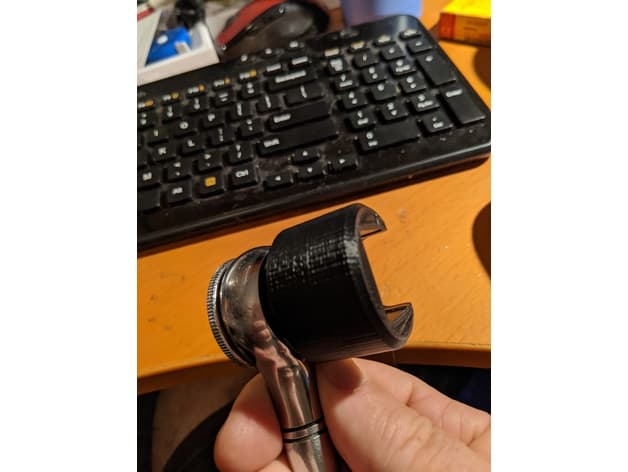

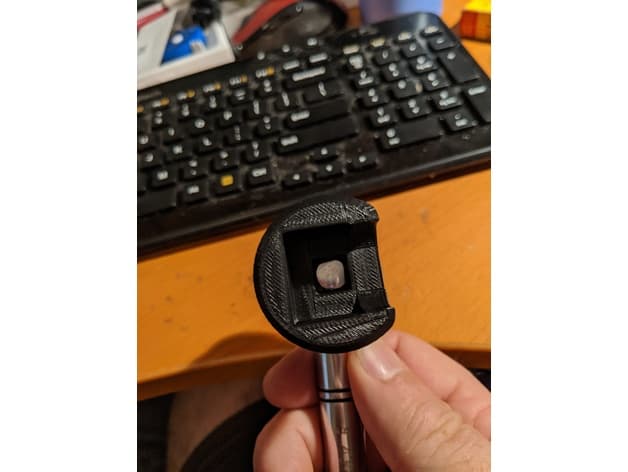

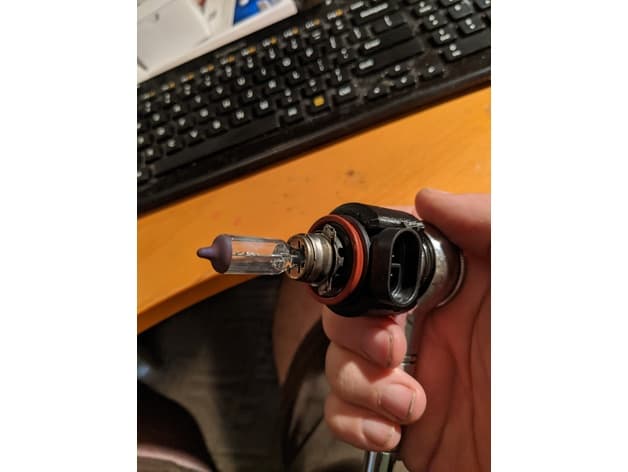

Reinforced hand wrench for removing and installing the H11 headlight bulb in a 2015 Grand Cherokee WK2's confined lamp housing. The selected version is the physically tested hand-tool geometry; the source warns that the bulb turns only one quarter turn.
