Heat-Shield Foil Jumbo Washer

Nylon1 FILECC-BYMechanical

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Heat-Shield Foil Jumbo Washer
OEM: —
APPLICATION: Wrangler JK

Loading 3D viewer...

CARGO ID · CJ-3D / 0791QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-0791

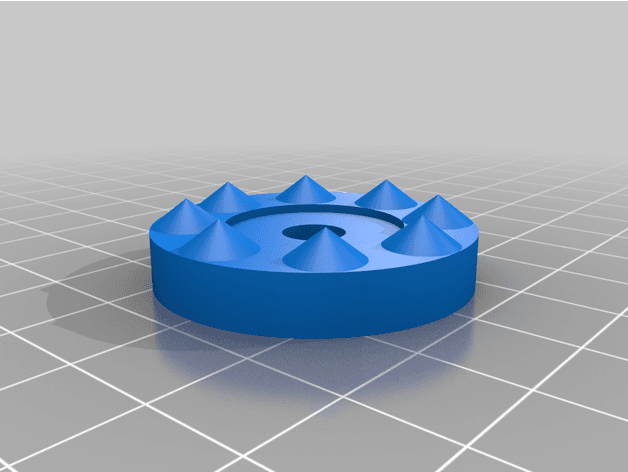

[01]jumbo_washer.stljumbo_washer.stl.STL
[02]Bounding box35.000 × 35.000 × 9.000 mm
[03]Volume5,658.42 mm³

Field notes

BY RYAN CROSBY (CROZONE)

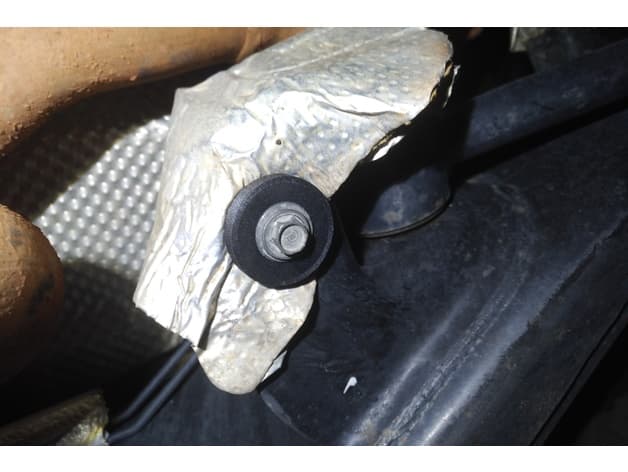

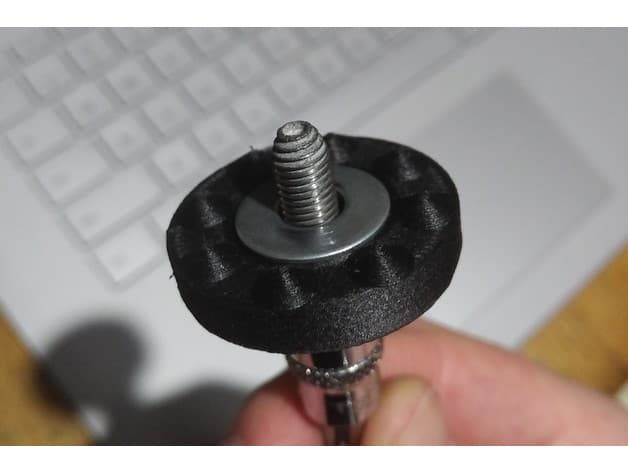

Large spiked washer that spreads the load of the factory 10 mm heat-shield fastener on a Wrangler JK subframe. The creator specifies solid, high-temperature tough material and used glass-filled nylon; sandwich it under a metal washer.

View original source ↗
