Horn-Button Repair Spacers

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYElectrical

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Horn-Button Repair Spacers
OEM: —
APPLICATION: Wrangler YJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0728QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

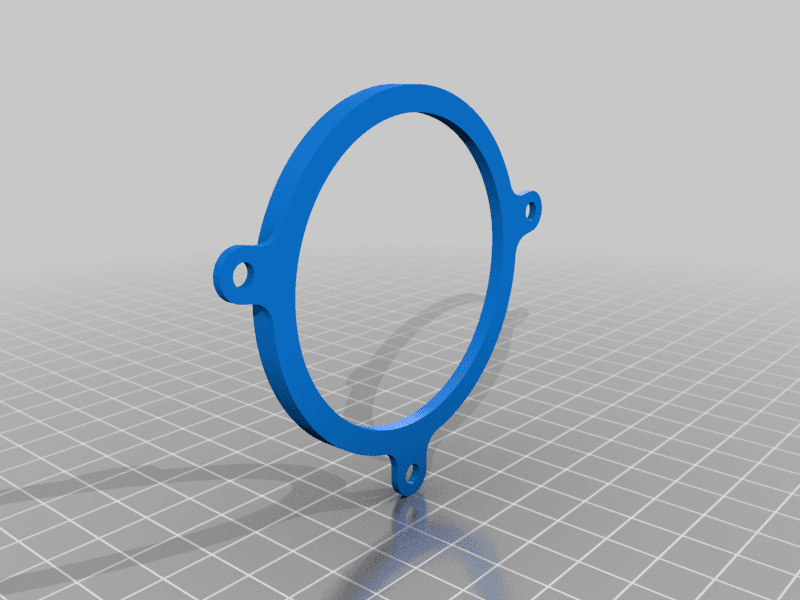

PLATE 01 / 02No caption recorded

Build sheet

MAN-0728

[01]Spacer1.STLSpacer1.STL.STL
[02]Spacer2.STLSpacer2.STL.STL
[03]Bounding box88.185 × 78.994 × 13.716 mm
[04]Volume6,418.624 mm³

Field notes

BY NOEL SMITH (STARWRITER)

Two printable plastic spacer components for repairing the horn-button assembly. The source only verifies the YJ application, so other same-era vehicles were not linked.

View original source ↗
