HVAC Actuator Gear

ABS · Nylon1 FILECC-BYDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: HVAC Actuator Gear
OEM: —
APPLICATION: Grand Cherokee WK2

Loading 3D viewer...

CARGO ID · CJ-3D / 0960QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-0960

[01]Jeep_Gear_5-15-18.stlJeep_Gear_5-15-18.stl.STL
[02]Bounding box37.408 × 36.847 × 11.430 mm
[03]Volume5,396.563 mm³

Field notes

BY HOPE CHAMBERS (HOPE_CHAMBERS)

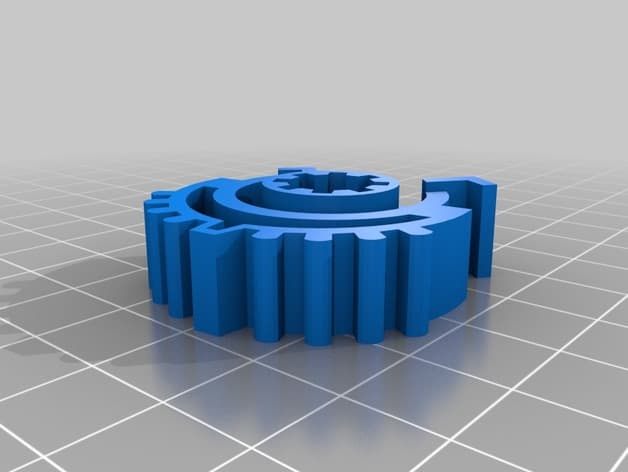

Replacement internal gear for the air-conditioning actuator in a 2011 Grand Cherokee WK2. The printable geometry reproduces the failed compound gear and keyed center bore.

View original source ↗
