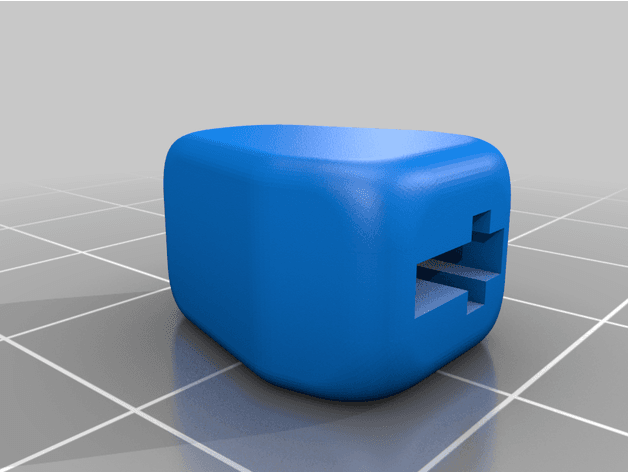

HVAC Slider Knob

REPLACES OEMJ3222060

ABS · Nylon · PETG1 FILECC-BYDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: HVAC Slider Knob
OEM: J3222060
APPLICATION: Wrangler YJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0720QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-0720

[01]Slider_Knob_v9.stlSlider_Knob_v9.stl.STL
[02]Bounding box15.000 × 11.819 × 9.000 mm
[03]Volume1,041.541 mm³

Field notes

BY SEAN MCGINTY (SLACKERSEAN)

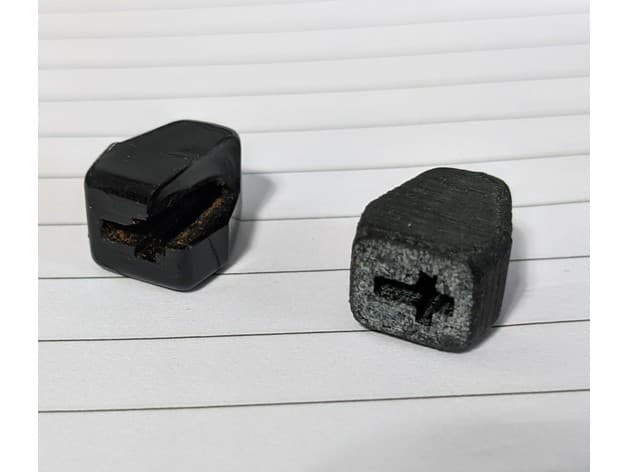

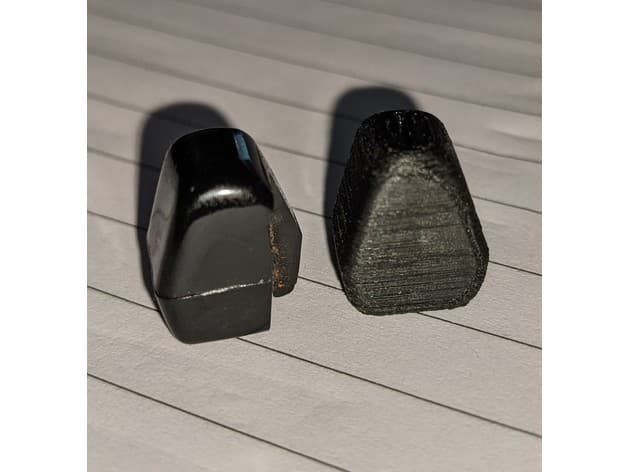

Replacement slider knob for the defrost, heater and vent controls. It was measured from a broken original, physically compared with the original and test-fitted successfully.

View original source ↗
