In-Dash 5.25-Inch Speaker Pods

ABS · Nylon · PETGMULTI-PART4 FILESCC-BYInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: In-Dash 5.25-Inch Speaker Pods
OEM: —
APPLICATION: Wrangler TJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0744QTY 4 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-0744

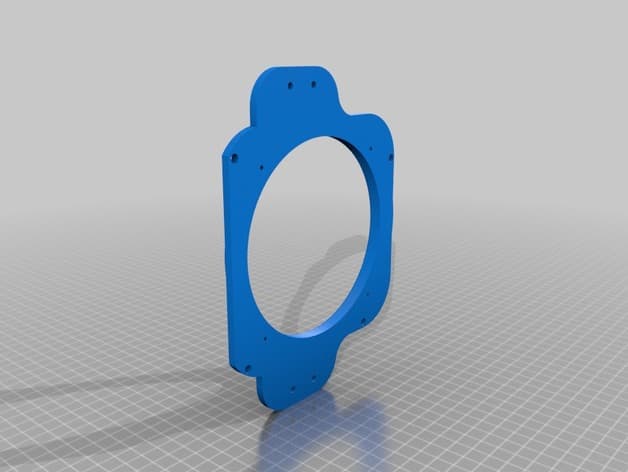

[01]TJ_5_25_Dash_Pod_Face_L.stlTJ_5_25_Dash_Pod_Face_L.stl.STL
[02]TJ_5_25_Dash_Pod_Face_R.stlTJ_5_25_Dash_Pod_Face_R.stl.STL

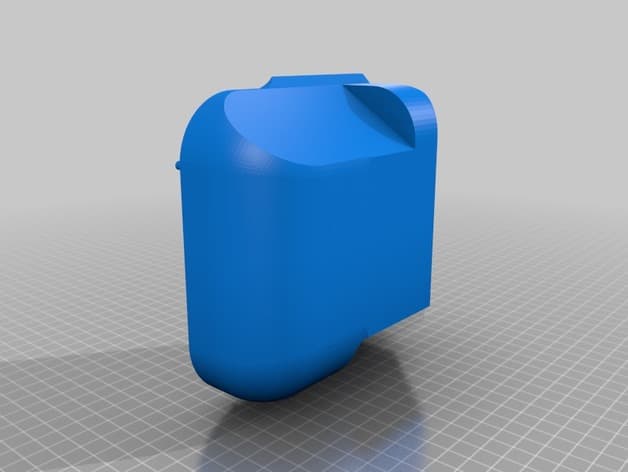

[03]TJ_5_25_Dash_Pod_Shell_L.stlTJ_5_25_Dash_Pod_Shell_L.stl.STL
[04]TJ_5_25_Dash_Pod_Shell_R.stlTJ_5_25_Dash_Pod_Shell_R.stl.STL
[05]Bounding box196.900 × 146.000 × 128.000 mm
[06]Volume289,800.524 mm³

Field notes

BY CHASE COBB (CHASE_C)

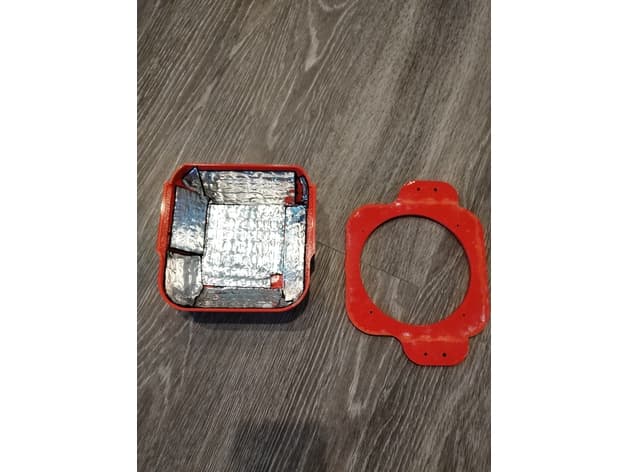

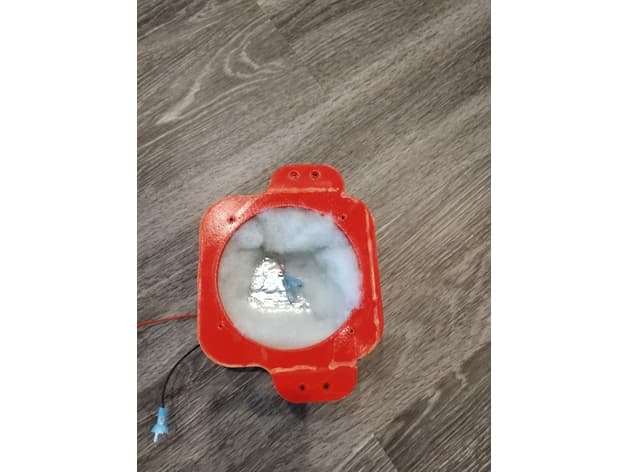

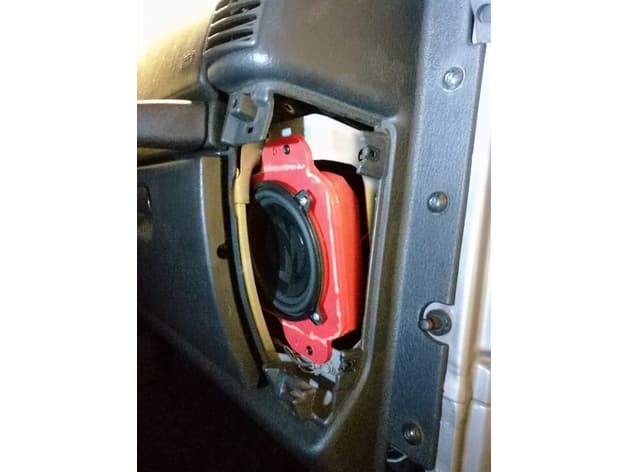

Left and right faceplates and enclosures that replace the TJ's front dashboard speaker mounts with 5.25-inch pods. The creator printed, installed and evaluated the complete set.
