Interior Door-Handle Cable Clip

Nylon · PETG1 FILECC-BYDoors

DA FORM 2410 — COMPONENT RECORDFIG 3-14

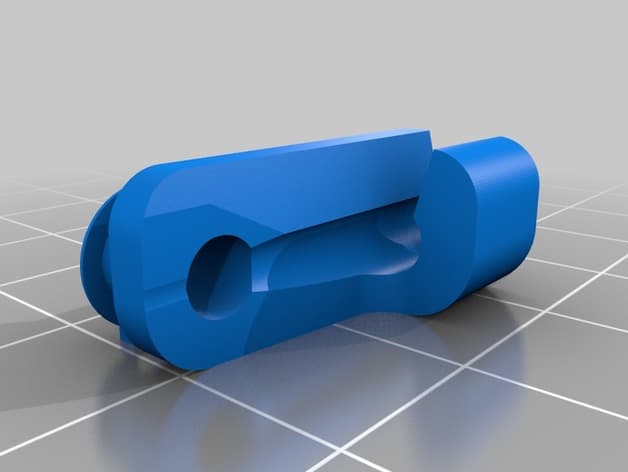

NOMENCLATURE: Interior Door-Handle Cable Clip
OEM: —
APPLICATION: Wrangler JK

Loading 3D viewer...

CARGO ID · CJ-3D / 0782QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-0782

[01]Jeep_Wrangler_Door_Clip_v4.stlJeep_Wrangler_Door_Clip_v4.stl.STL
[02]Bounding box24.000 × 16.000 × 10.000 mm
[03]Volume972.705 mm³

Field notes

BY ERIC HOWELL (AZCOIGREACH)

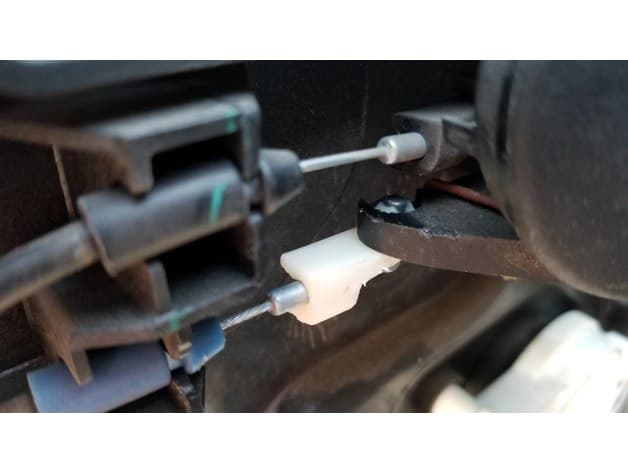

Replacement clip that secures the interior door-handle release cable on Wrangler JK doors. The creator recommends a heat-resistant, slightly flexible material.

View original source ↗
