Interior Trim Screw Caps

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Interior Trim Screw Caps
OEM: —
APPLICATION: Comanche MJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0987QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-0987

[01]MJ_Cap_Large.STLMJ_Cap_Large.STL.STL
[02]MJ_plug.STLMJ_plug.STL.STL
[03]Bounding box28.400 × 14.900 × 4.318 mm
[04]Volume468.477 mm³

Field notes

BY CRAIG H (DIRTYDIESELDUB)

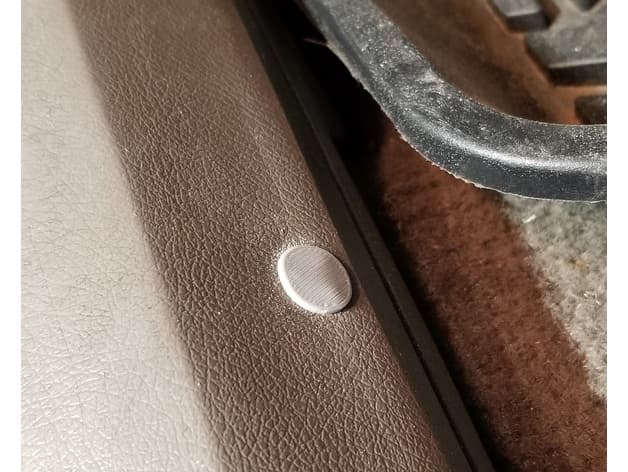

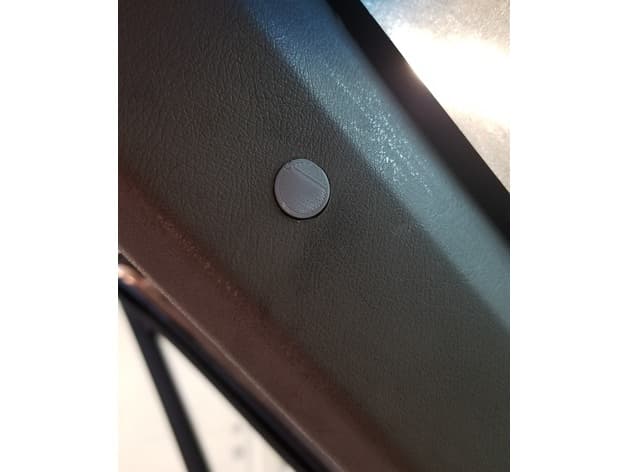

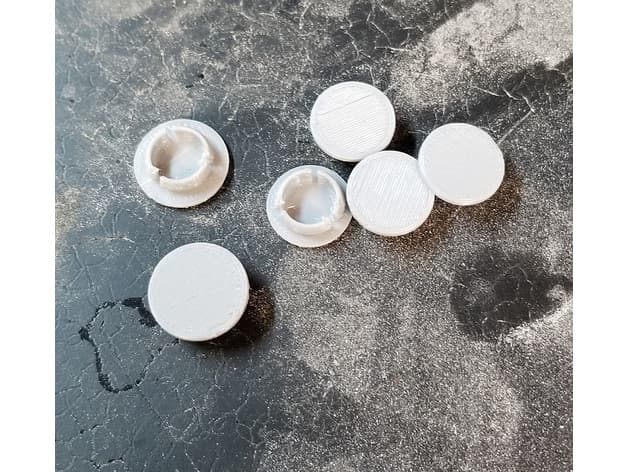

Small and large replacement caps for exposed interior trim screws in a Jeep Comanche MJ, including the larger fastener above the dome lamp. The source documents the physical prints and installed fit in several trim locations.
