Left-Cubby RJ45 Radio Faceplates

ABS · Nylon · PETGMULTI-PART3 FILESCC-BYDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Left-Cubby RJ45 Radio Faceplates
OEM: —
APPLICATION: Wrangler JL

Loading 3D viewer...

CARGO ID · CJ-3D / 0826QTY 3 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-0826

[01]Jeep_JL_Left_Cubby_Aux_blank.stlJeep_JL_Left_Cubby_Aux_blank.stl.STL
[02]Jeep_JL_Left_Cubby_Aux_RJ45_R.stlJeep_JL_Left_Cubby_Aux_RJ45_R.stl.STL
[03]Jeep_JL_Left_Cubby_Aux_RJ45_L.stlJeep_JL_Left_Cubby_Aux_RJ45_L.stl.STL
[04]Bounding box0.114 × 0.045 × 0.036 mm
[05]Volume0 mm³

Field notes

BY COLE MCDONALD (GAJLAVANT)

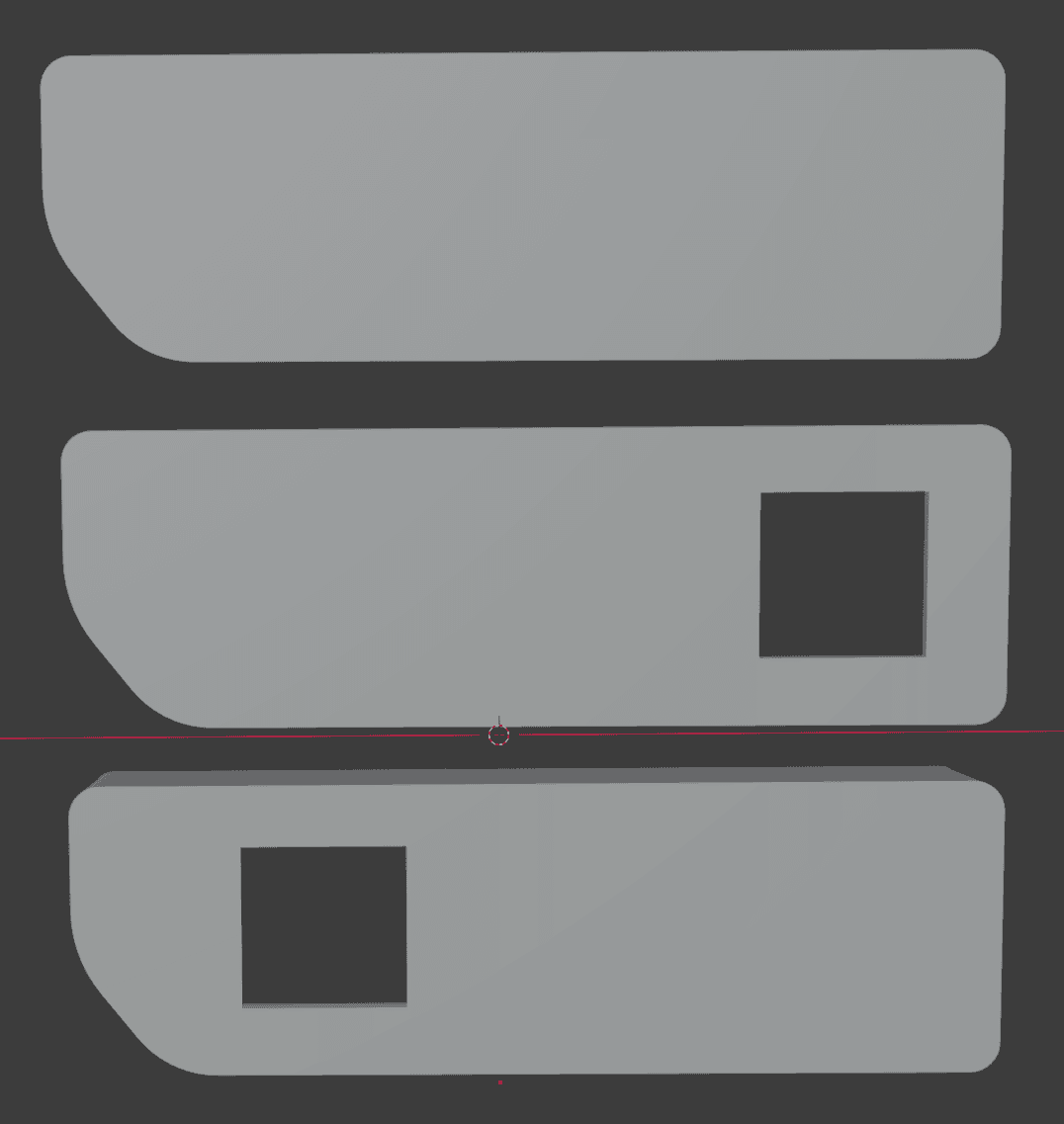

Blank and left/right RJ45 faceplates for the Wrangler JL Rubicon left dashboard cubby. The connector openings fit extensions used with Midland MXT275 and MXT575 radio handsets.
