Lower-Dash Auxiliary Switch Panel

ABS · Nylon · PETGMULTI-PART3 FILESCC-BYDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Lower-Dash Auxiliary Switch Panel
OEM: —
APPLICATION: Cherokee / Liberty XJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0829QTY 3 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0829

[01]switch_round2.stlswitch_round2.stl.STL
[02]xj_3switch_rect.stlxj_3switch_rect.stl.STL
[03]xj_switch_rect.stlxj_switch_rect.stl.STL
[04]Bounding box6.342 × 5.895 × 2.591 mm
[05]Volume7.273 mm³

Field notes

BY JOHN GARISON (FADE99)

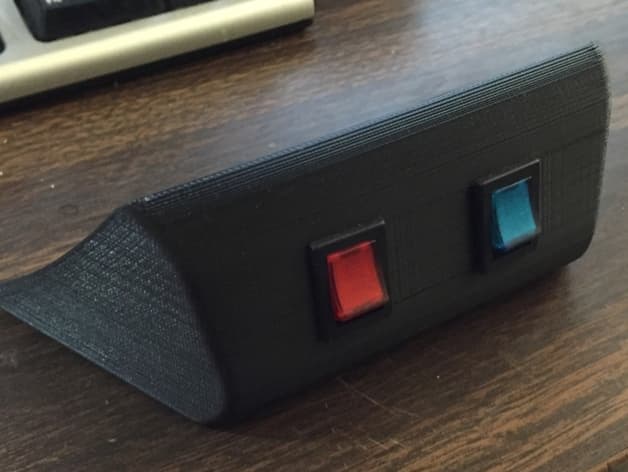

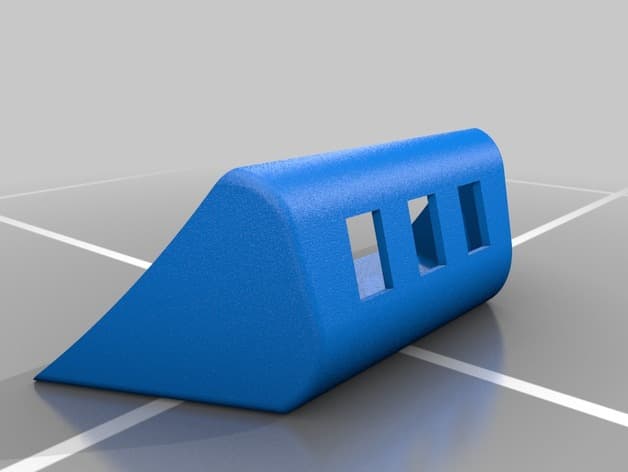

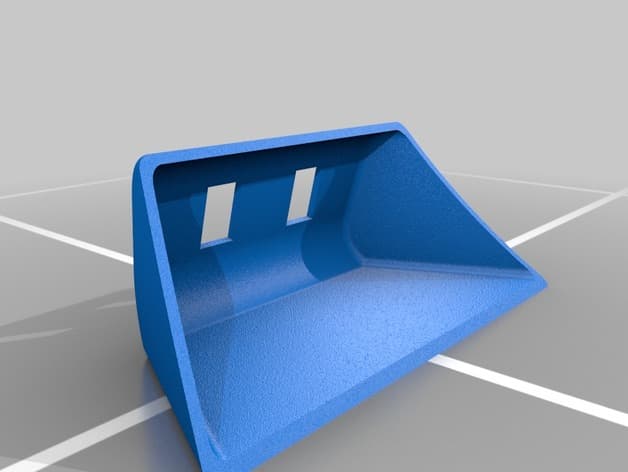

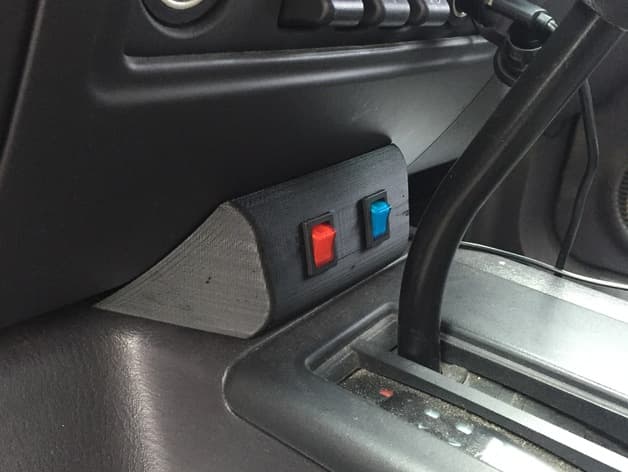

Auxiliary switch panel for a 2000 Cherokee XJ that mounts ahead of the shifter with automotive double-sided tape. Single rectangular, three rectangular, and round-rocker layouts are included.
