Manual-Window Center Switch Panel

ABS · Nylon · PETG1 FILECC-BYDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Manual-Window Center Switch Panel
OEM: —
APPLICATION: Wrangler JL

Loading 3D viewer...

CARGO ID · CJ-3D / 0815QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-0815

[01]Switch_Panel_V1.stlSwitch_Panel_V1.stl.STL
[02]Bounding box82.500 × 72.500 × 46.000 mm
[03]Volume26,442.121 mm³

Field notes

BY OLIVIER MAYRAND (BRAINDAMAGE193)

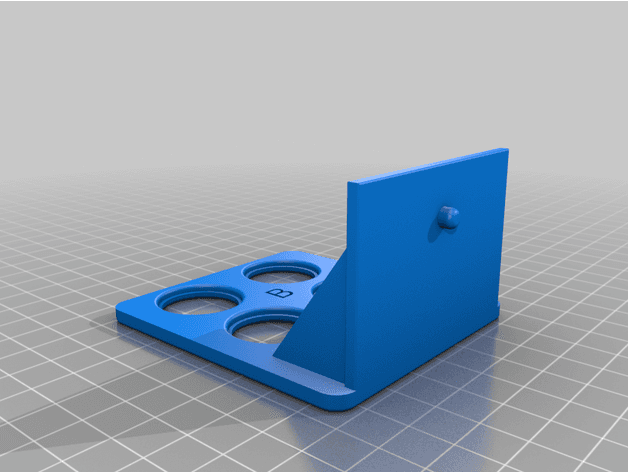

Friction-fit auxiliary switch panel for 2018-and-newer Wrangler JL models without power windows. It accepts four 19 mm round switches and one rocker switch.
