Mirror-Arm Stops

ABS · Nylon · PETG1 FILECC-BYExterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Mirror-Arm Stops
OEM: —
APPLICATION: Wrangler YJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0727QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-0727

[01]YJ_Mirror_Stops.stlYJ_Mirror_Stops.stl.STL
[02]Bounding box67.000 × 42.998 × 15.500 mm
[03]Volume15,674.855 mm³

Field notes

BY CHRIS KROTH (CKROTH14)

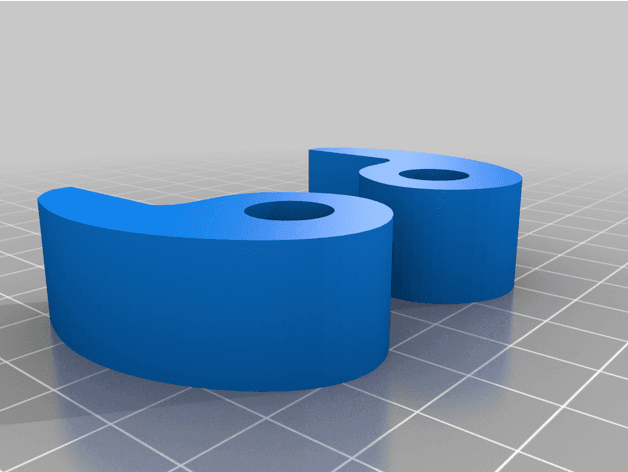

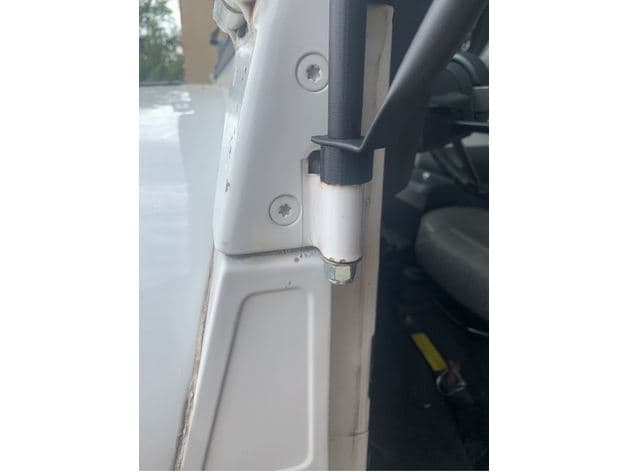

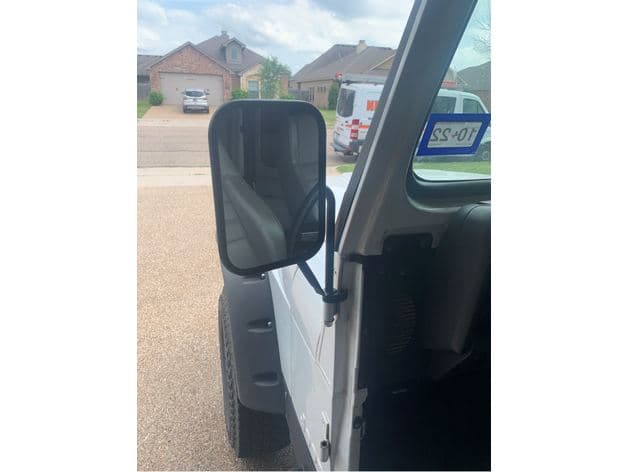

Paired stops that fit around the mirror-arm mounting nuts to limit mirror movement. The creator installed ABS prints and provides fitting cautions for seating the nut without overloading the part.

View original source ↗
