Modular Dashboard RAM-Ball Plate

ABS · Nylon · PETGMULTI-PART3 FILESCC-BY-NCDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Modular Dashboard RAM-Ball Plate
OEM: —
APPLICATION: Gladiator JT

Loading 3D viewer...

CARGO ID · CJ-3D / 0976QTY 3 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-0976

[01]jt_base_left.3mfjt_base_left.3mf.STL
[02]jt_base_right.3mfjt_base_right.3mf.STL
[03]ball-post-short.3mfball-post-short.3mf.STL
[04]Bounding box148.000 × 56.000 × 35.387 mm
[05]Volume83,994.898 mm³

Field notes

BY RJ_RUIN

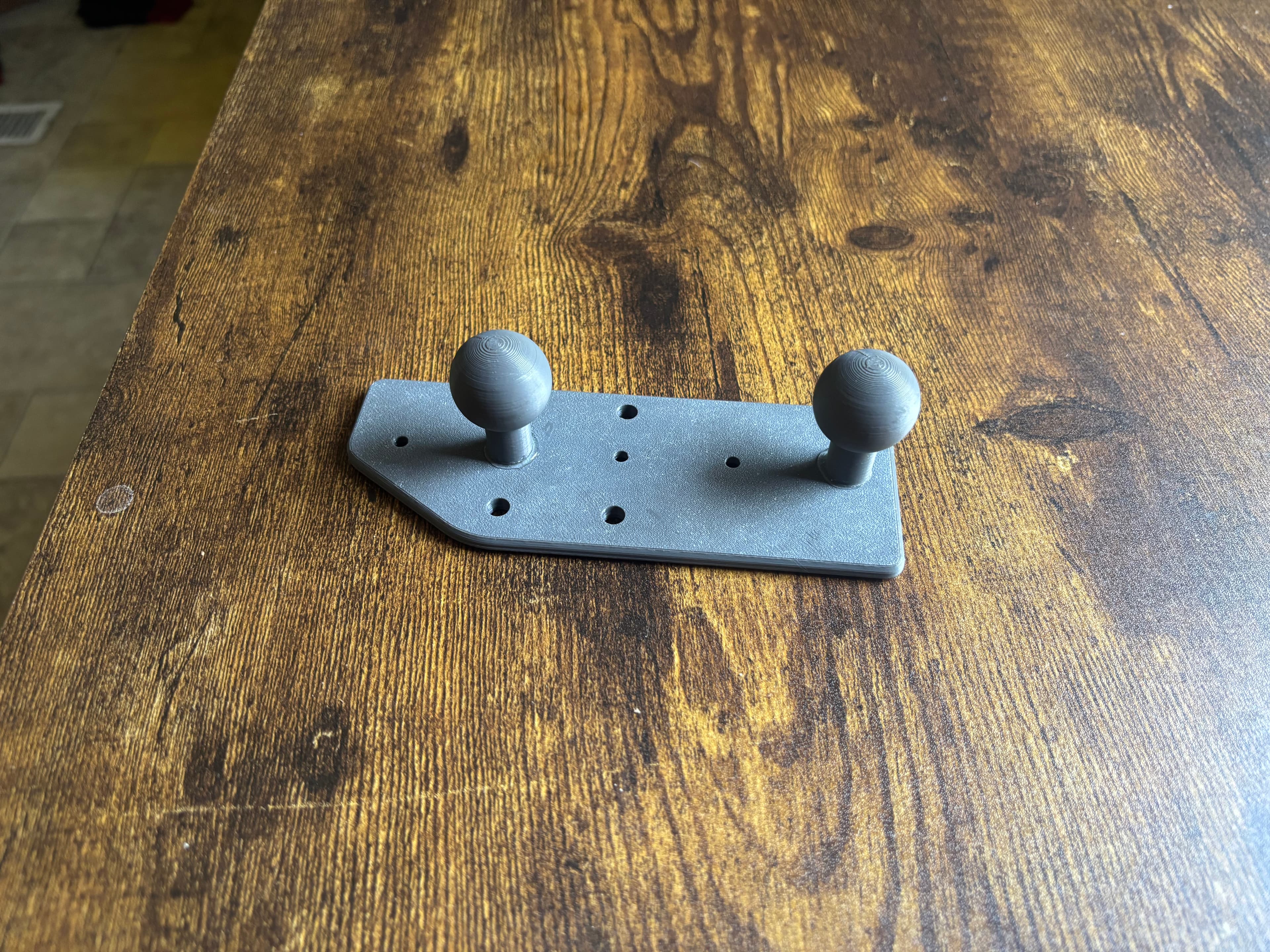

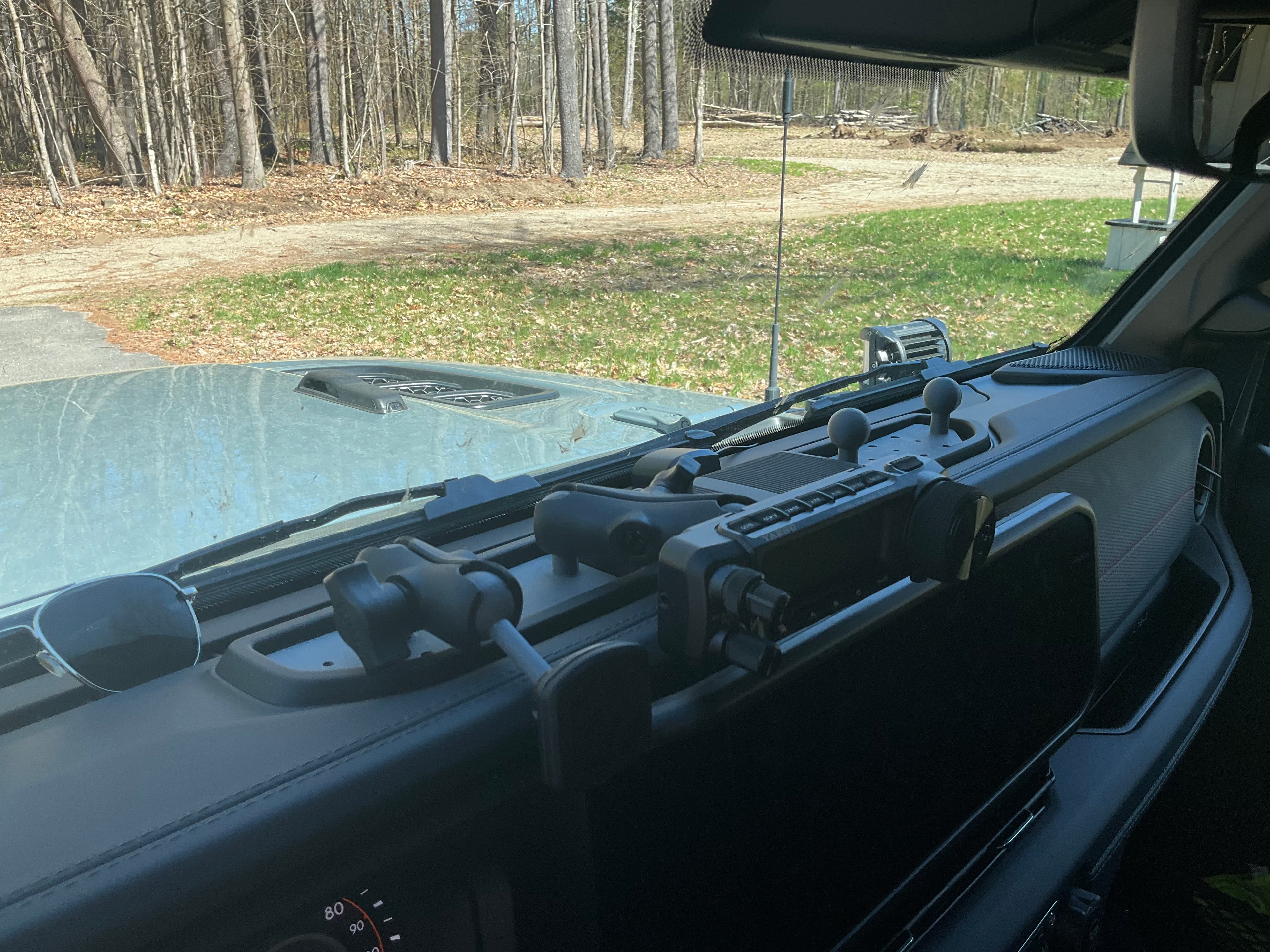

Left- and right-side mounting plates that bolt to the factory threaded inserts under the Gladiator JT dashboard tray. A separate short one-inch-style ball post can be positioned on either plate for compatible phone or radio arms.
