Padded-Roll-Bar Utility Hook

ABS · NylonMULTI-PART2 FILESCC-BY-NC-SAInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Padded-Roll-Bar Utility Hook
OEM: —
APPLICATION: Wrangler TJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0742QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0742

[01]Left-v2.stlLeft-v2.stl.STL
[02]Right-v2.stlRight-v2.stl.STL
[03]Bounding box153.992 × 126.509 × 7.000 mm
[04]Volume27,148.496 mm³

Field notes

BY MIKE HORNUNG (MIKEYMAKESIT)

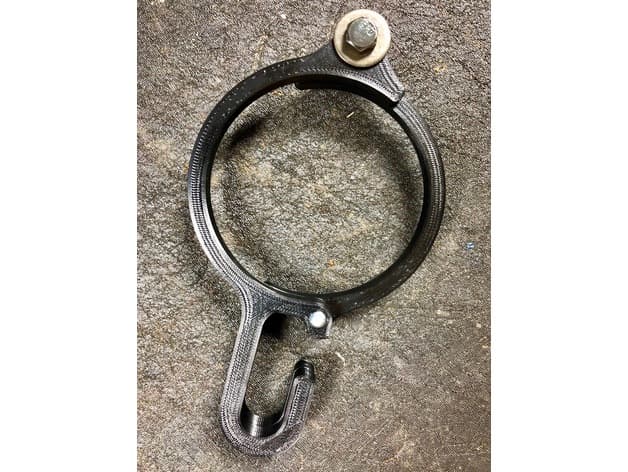

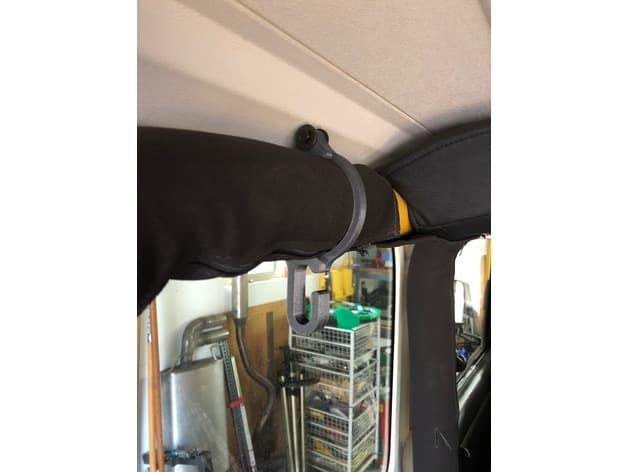

Hinged hook sized around the TJ's approximately three-inch padded roll bar. The revised left and right halves add a lower M3 closure to prevent spreading when unloaded.
