Parking-Brake Release Handle

REPLACES OEMJ4487994

ABS · Nylon · PETG1 FILECC-BYInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Parking-Brake Release Handle
OEM: J4487994
APPLICATION: Wrangler YJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0705QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0705

[01]jeep_brake_handle.STLjeep_brake_handle.STL.STL
[02]Bounding box70.000 × 33.000 × 16.000 mm
[03]Volume18,689.784 mm³

Field notes

BY NATE SYKES (NATESYKES1)

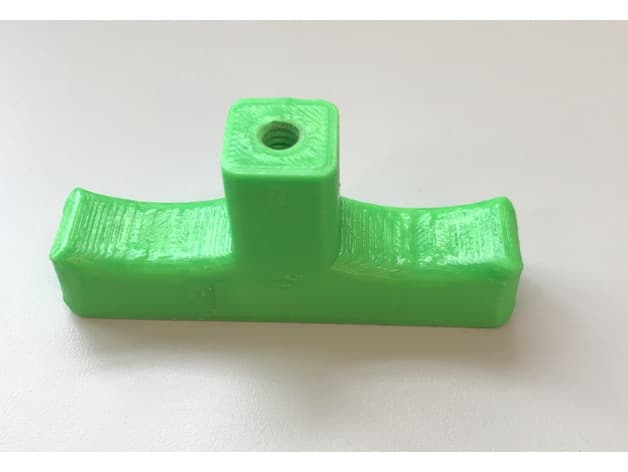

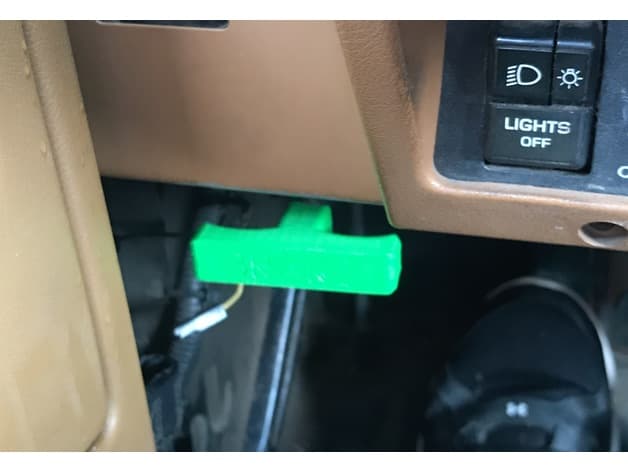

Screw-on T-handle replacement for the parking-brake release control. The physical source photographs show the printed handle fitted below the dashboard.

View original source ↗
