Power-Antenna Gear Pair

ABS · NylonMULTI-PART2 FILESCC-BY-SAElectrical

DA FORM 2410 — COMPONENT RECORDFIG 3-14

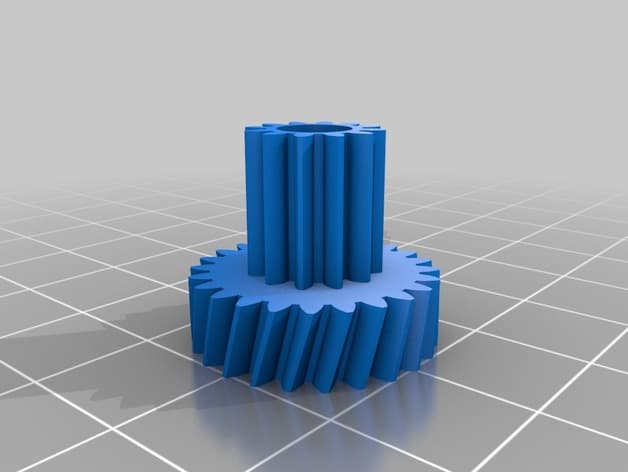

NOMENCLATURE: Power-Antenna Gear Pair
OEM: —
APPLICATION: Grand Cherokee ZJ / ZG

Loading 3D viewer...

CARGO ID · CJ-3D / 0915QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-0915

[01]Jeep_ZJ_Power_antenna-transfer-gear_v4.stlJeep_ZJ_Power_antenna-transfer-gear_v4.stl.STL
[02]Jeep_ZJ_antenna_pressure-wheel__v3.stlJeep_ZJ_antenna_pressure-wheel__v3.stl.STL
[03]Bounding box26.300 × 20.627 × 20.627 mm
[04]Volume3,233.162 mm³

Field notes

BY STEFAN STRIDH (CHIPEN83)

Replacement transfer gear and pressure roller for the Grand Cherokee ZJ power-antenna drive. The creator installed the pair after the worn mechanism rattled and failed to extend fully.
