Power-Seat Drive Gear

ABS · Nylon1 FILECC-BY-NCSeats

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Power-Seat Drive Gear
OEM: —
APPLICATION: Grand Cherokee ZJ / ZG

Loading 3D viewer...

CARGO ID · CJ-3D / 0910QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

7 PLATES

PLATE 01 / 07No caption recorded

Build sheet

MAN-0910

[01]Engrenagem.STLEngrenagem.STL.STL
[02]Bounding box24.000 × 23.996 × 18.950 mm
[03]Volume2,493.805 mm³

Field notes

BY ALESSANDRO FUCHS (FUCHS_71)

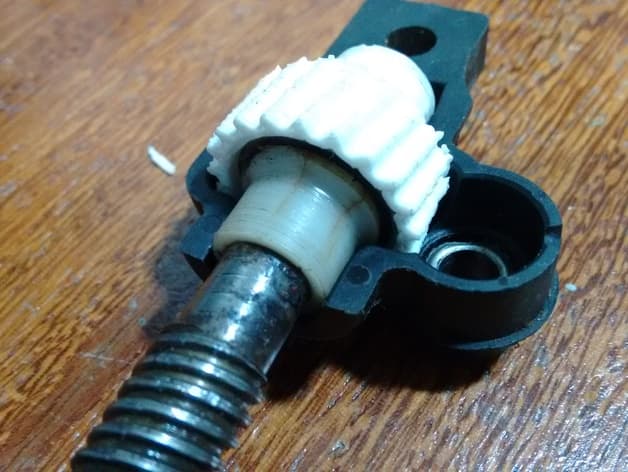

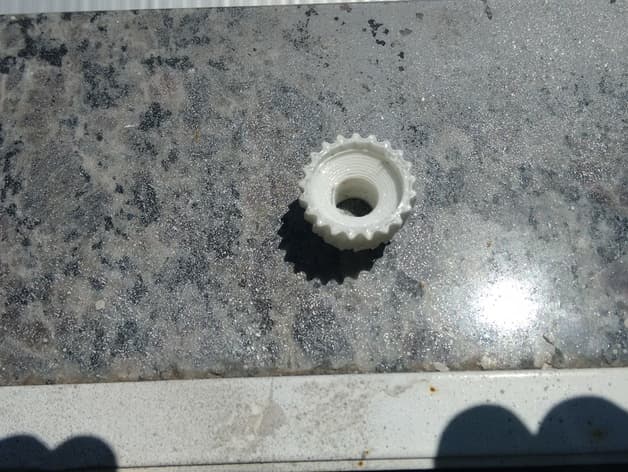

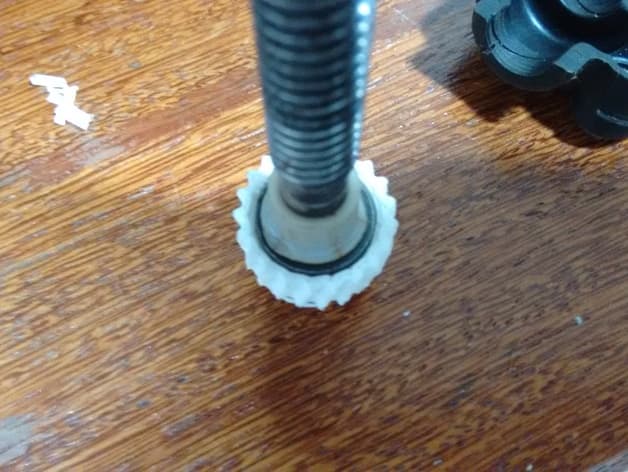

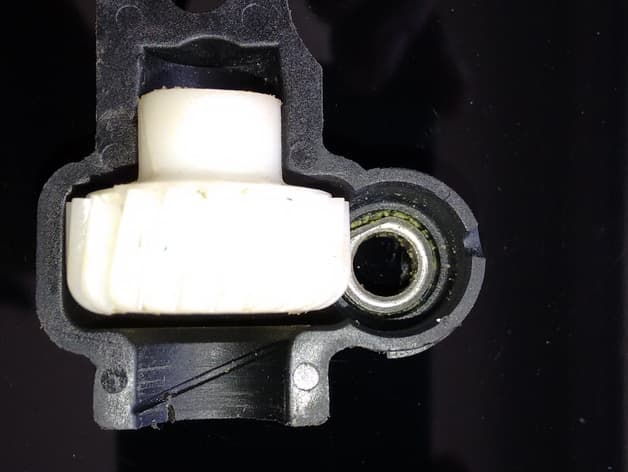

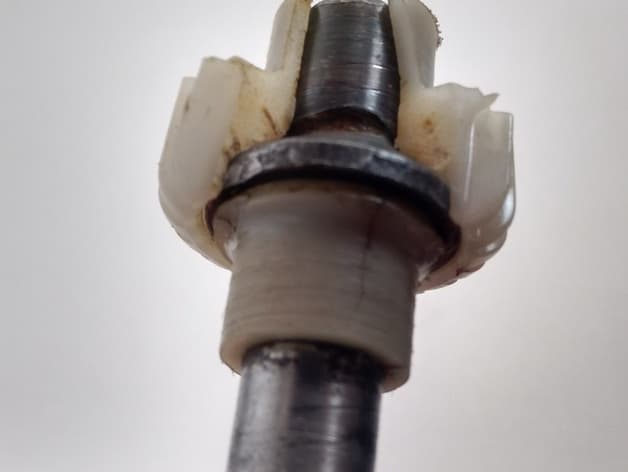

Replacement drive gear for a failed power-seat motion axis in a 1997 Grand Cherokee ZJ. The creator installed the printed gear after removing the broken original and documents the repaired mechanism.
