Pre-Facelift Cargo-Light Lens

ABS · Nylon · PETG1 FILECC-BYLights

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Pre-Facelift Cargo-Light Lens
OEM: —
APPLICATION: Cherokee / Liberty XJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0837QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

1 PLATE

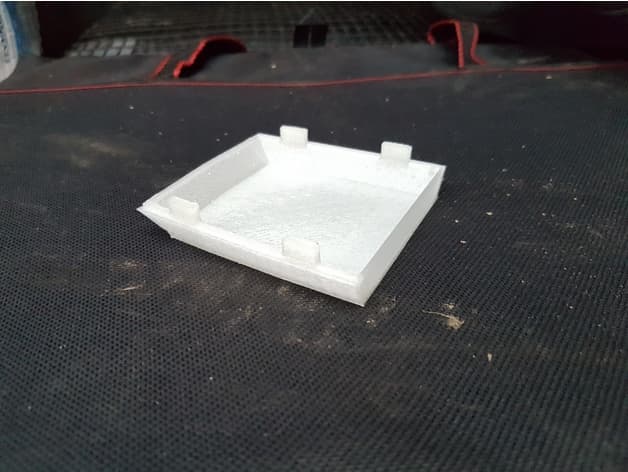

PLATE 01 / 01No caption recorded

Build sheet

MAN-0837

[01]Jeep_boot_light.stlJeep_boot_light.stl.STL
[02]Bounding box77.169 × 77.045 × 16.500 mm
[03]Volume17,592.256 mm³

Field notes

BY ANTHONY PROFFITT (BOXBURN)

Clear-print replacement lens for the rear cargo lamp in a pre-facelift Cherokee XJ. The creator notes that its edges are straight rather than curved like the original.
