Pre-Facelift Four-Door Lower Body Trim

ABS · Nylon · PETG1 FILECC-BYBody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Pre-Facelift Four-Door Lower Body Trim
OEM: —
APPLICATION: Cherokee / Liberty XJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0835QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0835

[01]Jeep_Trim_Small.stlJeep_Trim_Small.stl.STL
[02]Bounding box132.000 × 77.000 × 5.500 mm
[03]Volume11,661.018 mm³

Field notes

BY ANTHONY PROFFITT (BOXBURN)

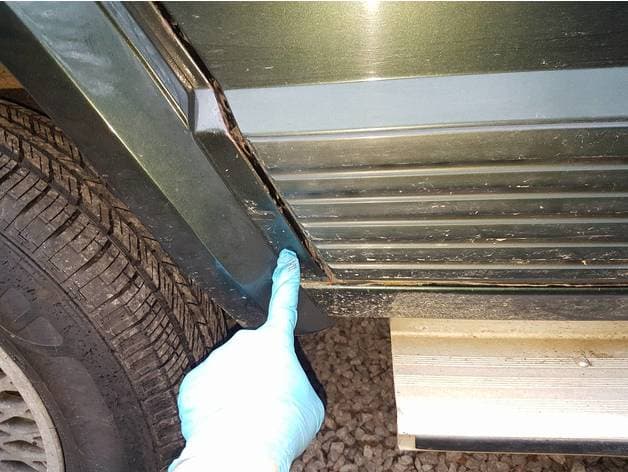

Small right-side lower trim replacement for a pre-facelift four-door Cherokee XJ, positioned between the passenger door and rear wheel arch. It is not intended for the two-door body.
