Rear Bench-Seat Floor Foot

REPLACES OEM4874151

ABS · Nylon · PETG1 FILECC-BYInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Rear Bench-Seat Floor Foot
OEM: 4874151
APPLICATION: Wrangler TJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0734QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-0734

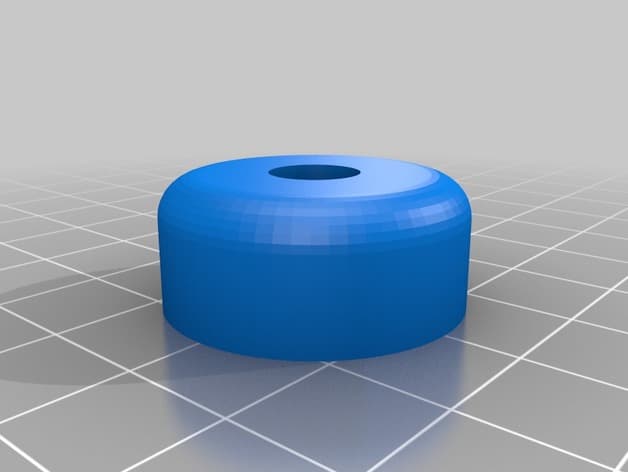

[01]JeepTJ_2000_RearBenchSeatFoot_Overmold.stlJeepTJ_2000_RearBenchSeatFoot_Overmold.stl.STL
[02]Bounding box27.000 × 27.000 × 11.500 mm
[03]Volume5,808.987 mm³

Field notes

BY JTHILLER

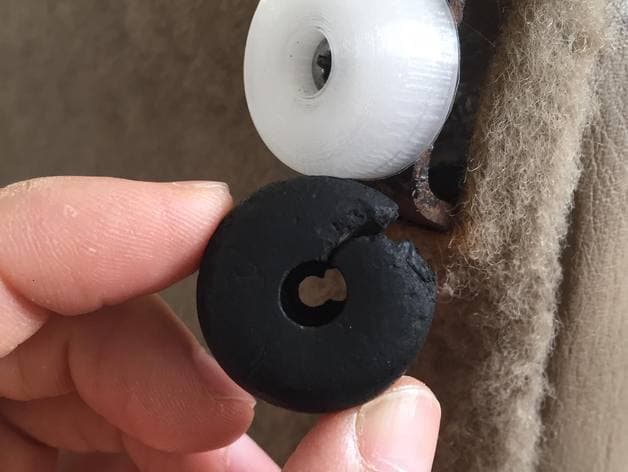

Exact-replica replacement foot for the removable rear bench seat, modeled from the part in a 2000 Wrangler Sport and designed to reuse the original embedded washer and screw.

View original source ↗
