Rear Soft-Top-Rail Cupholder

ABS · Nylon · PETG1 FILECC-BY-NC-SAInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Rear Soft-Top-Rail Cupholder
OEM: —
APPLICATION: Wrangler YJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0716QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0716

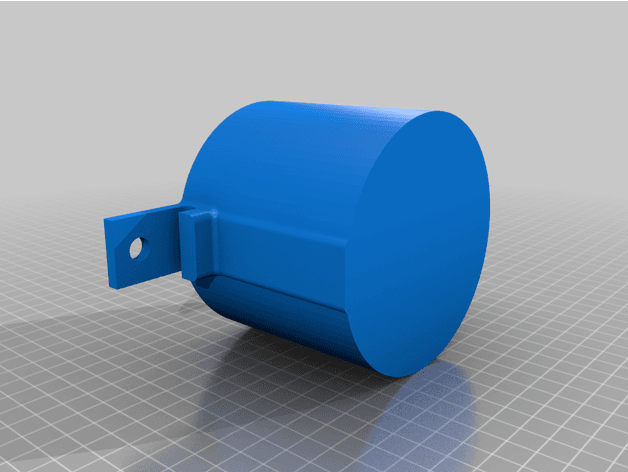

[01]CupHolder.stlCupHolder.stl.STL
[02]Bounding box132.080 × 99.060 × 82.550 mm
[03]Volume211,523.723 mm³

Field notes

BY BRANDON LEE (BMLBYTES1)

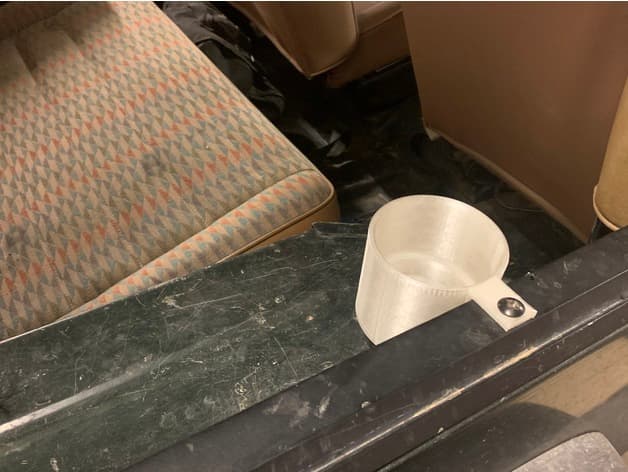

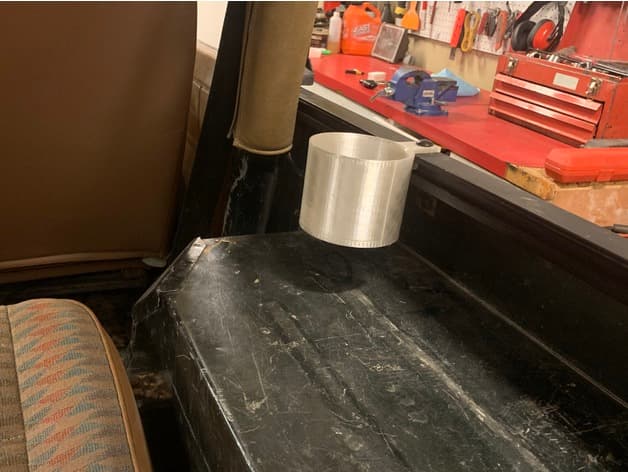

Rear-seat cupholder that slides into the factory soft-top track and is retained by an existing track screw. The creator recommends high infill around the mounting tabs and upright.

View original source ↗
