REDARC Tow-Pro Power-Outlet Adapter

ABS · Nylon · PETG1 FILECC-BY-NCDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: REDARC Tow-Pro Power-Outlet Adapter
OEM: —
APPLICATION: Gladiator JT

Loading 3D viewer...

CARGO ID · CJ-3D / 0977QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-0977

[01]trailer-brake-outlet-adapter.3mftrailer-brake-outlet-adapter.3mf.STL
[02]Bounding box40.995 × 40.991 × 9.000 mm
[03]Volume4,880.706 mm³

Field notes

BY RJ_RUIN

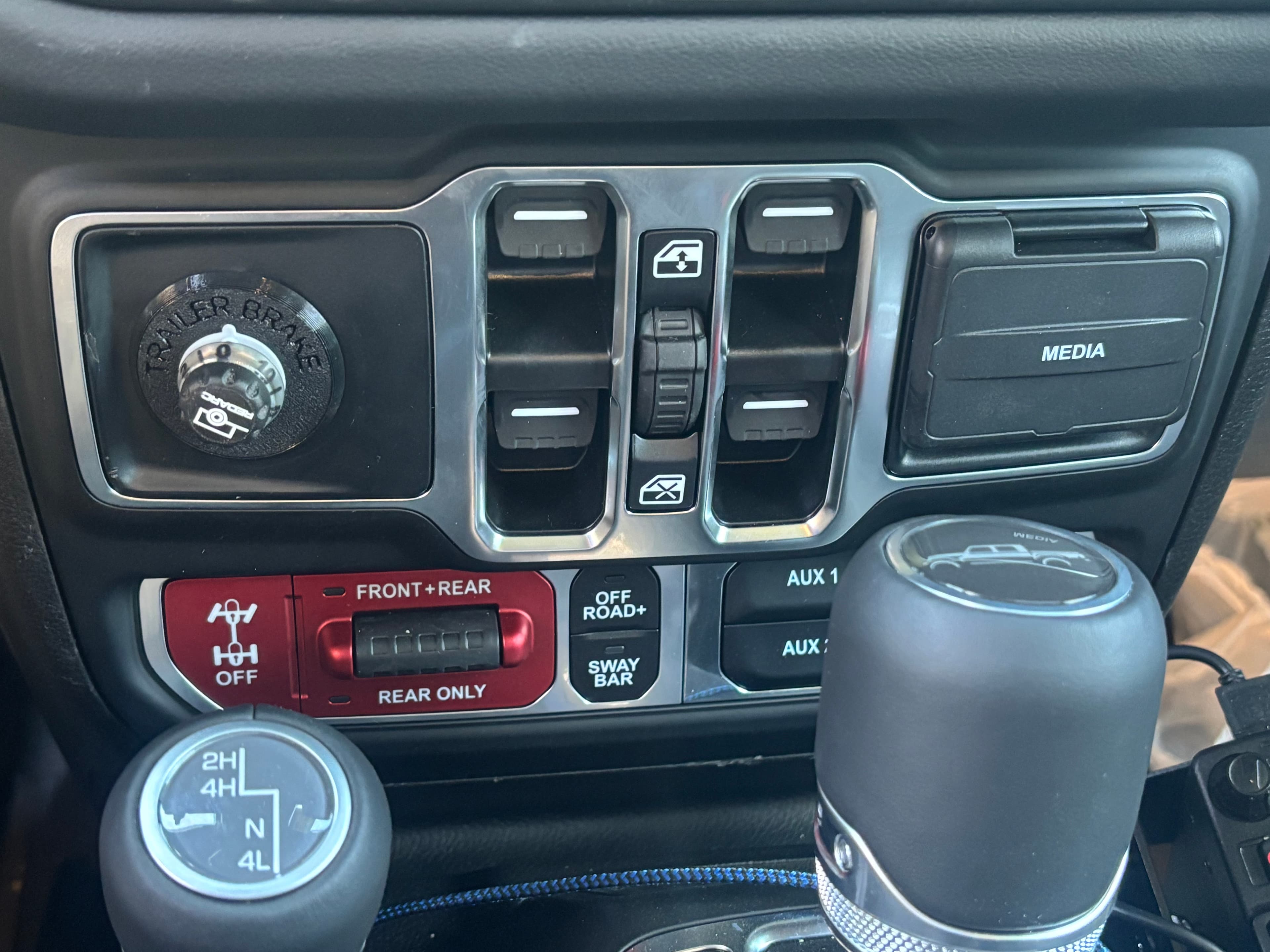

Replacement adapter for mounting a REDARC Tow-Pro Liberty trailer-brake control knob in the Gladiator JT's twelve-volt power-outlet position. The source shows the completed physical installation.

View original source ↗
