REDARC Trailer-Brake Console Bin

ABS · Nylon · PETG1 FILECC-BYDashboard

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: REDARC Trailer-Brake Console Bin
OEM: —
APPLICATION: Grand Cherokee WK2

Loading 3D viewer...

CARGO ID · CJ-3D / 0966QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0966

[01]GCRedarc2.stlGCRedarc2.stl.STL
[02]Bounding box153.998 × 73.004 × 28.527 mm
[03]Volume59,947.07 mm³

Field notes

BY COHO CARL (COHOCARL)

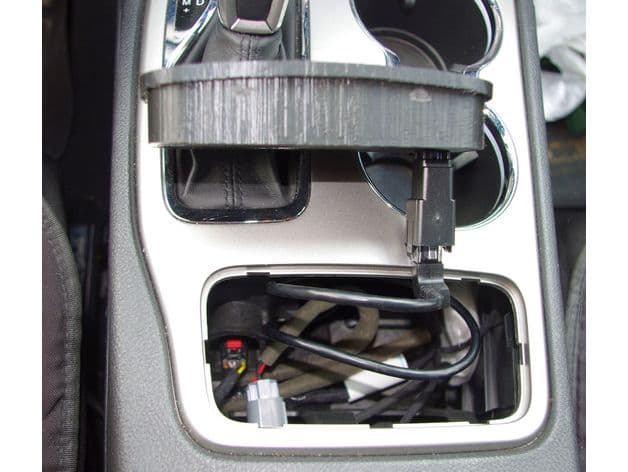

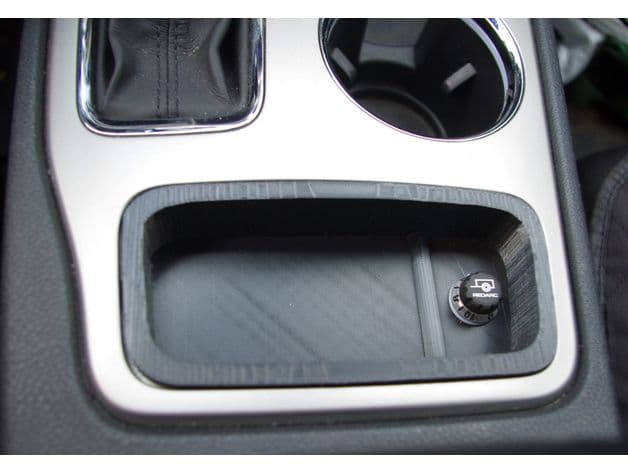

Replacement center-console storage bin for a 2019 Grand Cherokee WK2 without Selec-Terrain. It recesses and supports a REDARC trailer-brake remote knob without drilling the dashboard; the corrected revision 2 file is selected and the creator documents the installed assembly.
