Removable-Door Storage Hangers

ABS · Nylon · PETGMULTI-PART3 FILESCC-BYDoors

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Removable-Door Storage Hangers
OEM: —
APPLICATION: Wrangler TJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0739QTY 3 · STLHANDLE · NO SUPPORTS

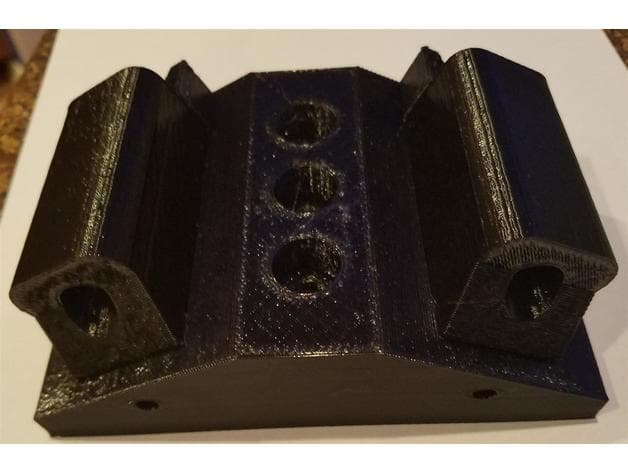

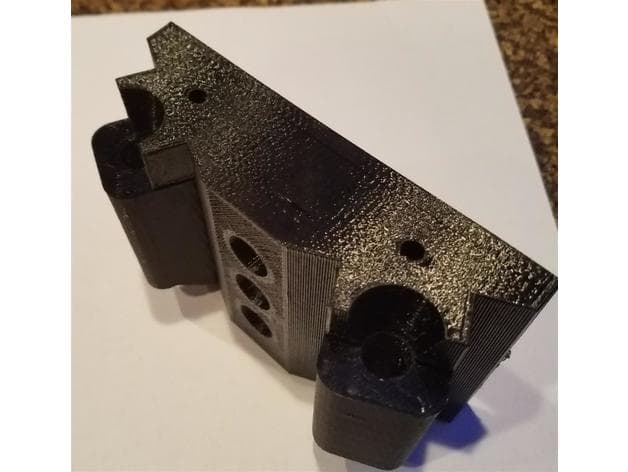

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0739

[01]Jeep_Door_Catch_v4.stlJeep_Door_Catch_v4.stl.STL

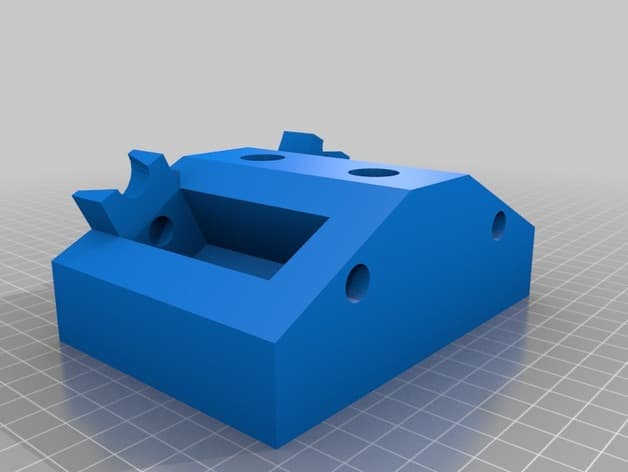

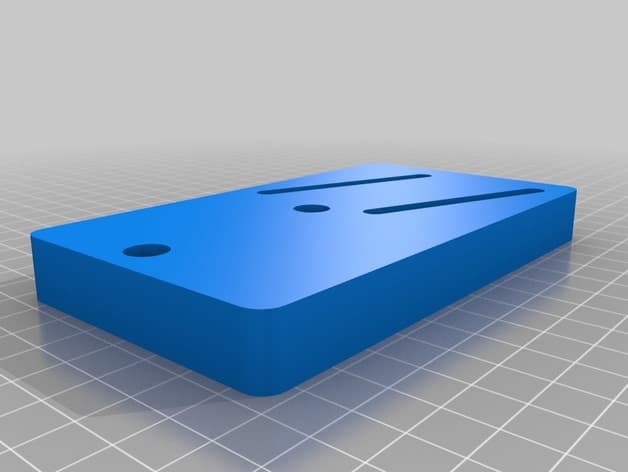

[02]Jeep_Door_Hanger_base_v5.stlJeep_Door_Hanger_base_v5.stl.STL
[03]Jeep_Door_Hanger_v5.stlJeep_Door_Hanger_v5.stl.STL
[04]Bounding box133.000 × 94.271 × 90.000 mm
[05]Volume594,031.077 mm³

Field notes

BY MIKE FRAME (MFRAME)

Three-piece wall-mount system that supports removed TJ doors from their factory hinge points instead of the window frame. The creator printed and load-tested the PETG design.
