Roof-Rack Rail Button

ABS · Nylon1 FILECC-BYExterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

Loading 3D viewer...

CARGO ID · CJ-3D / 0850QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-0850

Field notes

BY ANTHONY PROFFITT (BOXBURN)

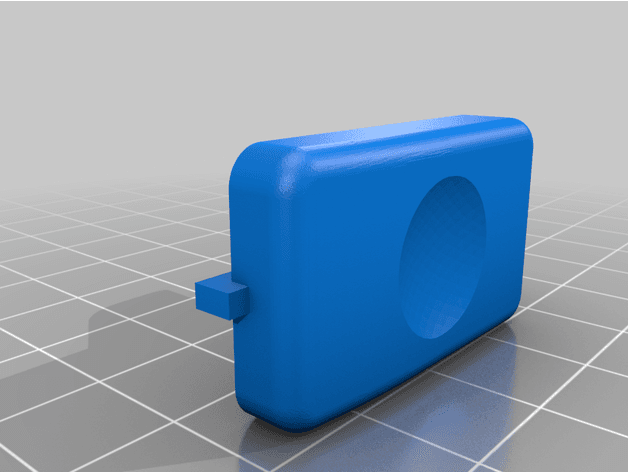

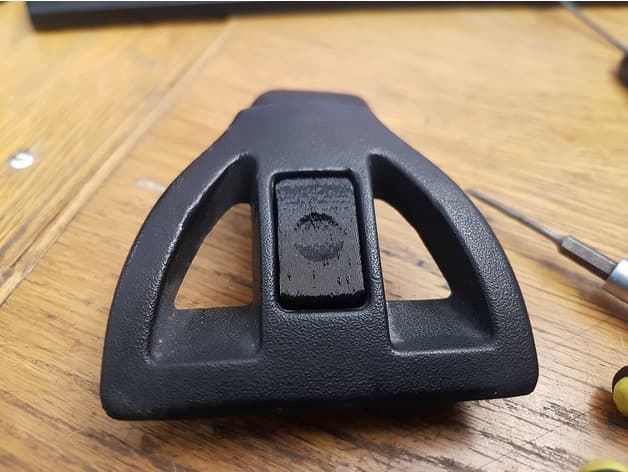

Taller replacement button for a Cherokee XJ roof-rack rail. The revised height and outer-face recess correct rocking seen with the earlier geometry.
