Side-Step End Caps

ABS · Nylon · PETGMULTI-PART5 FILESCC-BYBody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Side-Step End Caps
OEM: —
APPLICATION: Cherokee / Liberty XJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0839QTY 5 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

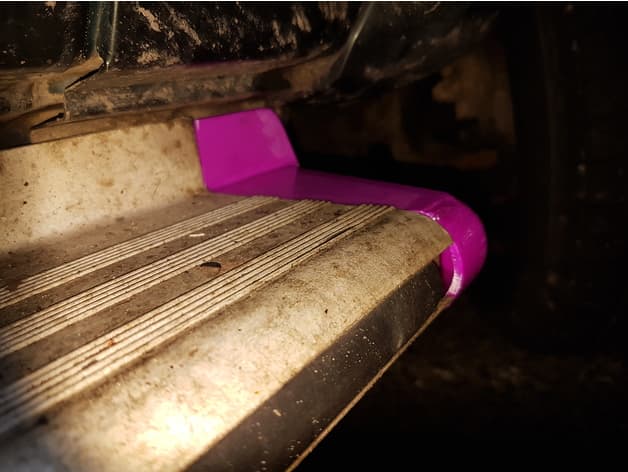

PLATE 01 / 06No caption recorded

Build sheet

MAN-0839

[01]Jeep_Step_Back_L.stlJeep_Step_Back_L.stl.STL
[02]Jeep_Step_Back_R.stlJeep_Step_Back_R.stl.STL

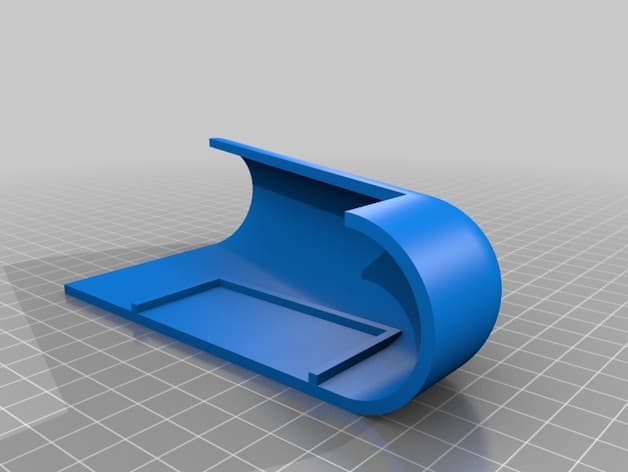

[03]Jeep_Step_Main_L.stlJeep_Step_Main_L.stl.STL
[04]Jeep_Step_Main_R.stlJeep_Step_Main_R.stl.STL

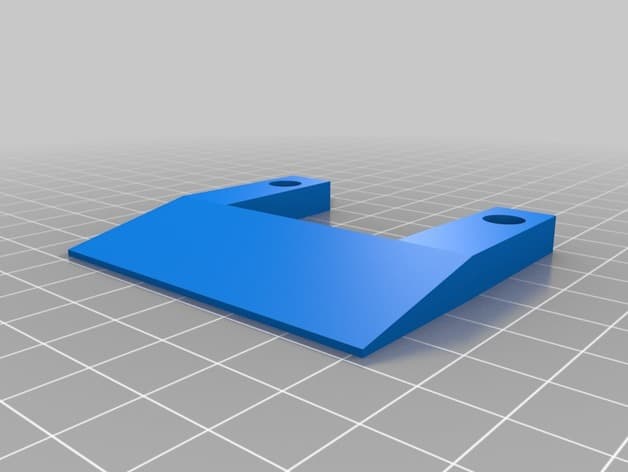

[05]Jeep_Step_Screw_LR.stlJeep_Step_Screw_LR.stl.STL
[06]Bounding box131.257 × 99.500 × 85.249 mm
[07]Volume117,244.501 mm³

Field notes

BY ANTHONY PROFFITT (BOXBURN)

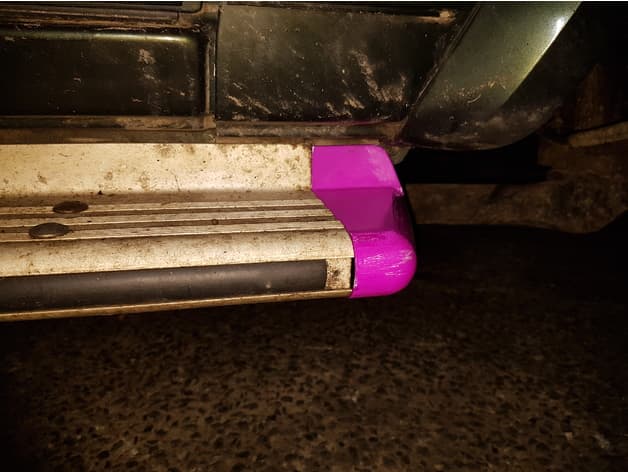

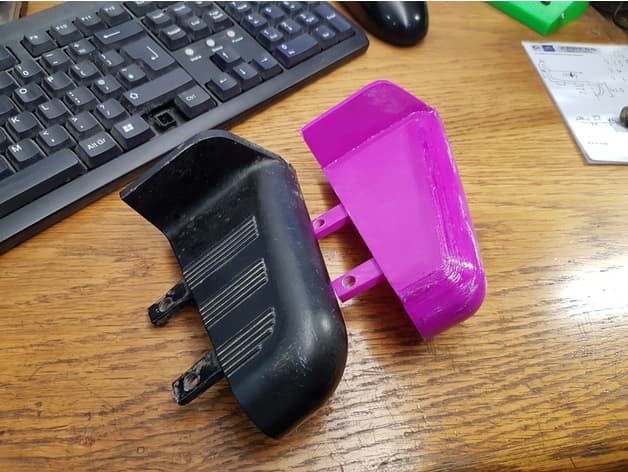

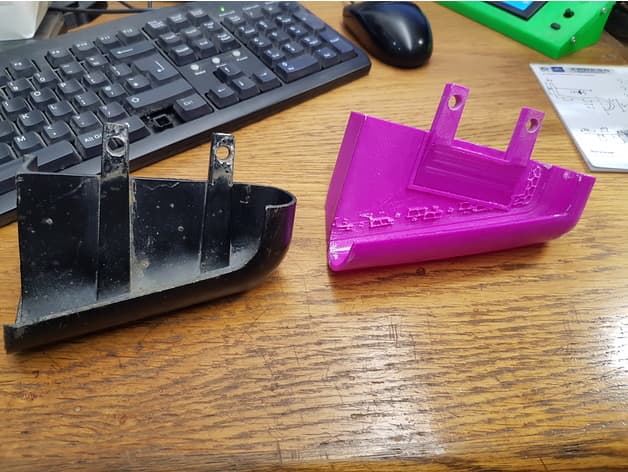

Multi-piece left- and right-side replacement end caps for factory Cherokee XJ side steps. The sections are bonded after printing and the screw piece must be tapped before installation.

View original source ↗
