Soft-Top Bow Ends

ABS · Nylon · PETGMULTI-PART4 FILESCC-BYBody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Soft-Top Bow Ends
OEM: —
APPLICATION: Wrangler YJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0726QTY 4 · STLHANDLE · NO SUPPORTS

Field photographs

6 PLATES

PLATE 01 / 06No caption recorded

Build sheet

MAN-0726

[01]Driver_side_1.stlDriver_side_1.stl.STL
[02]Driver_side_2.stlDriver_side_2.stl.STL
[03]Passenger_side_1.stlPassenger_side_1.stl.STL
[04]Passenger_side_2.stlPassenger_side_2.stl.STL
[05]Bounding box282.280 × 89.664 × 56.050 mm
[06]Volume202,083.781 mm³

Field notes

BY ABBOTT GEIL (OSMETHAE)

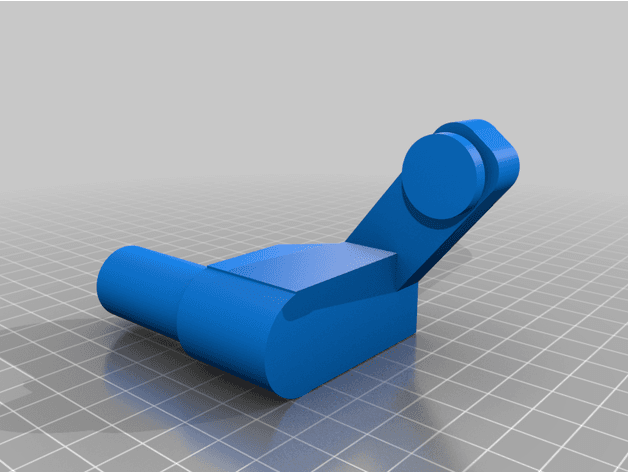

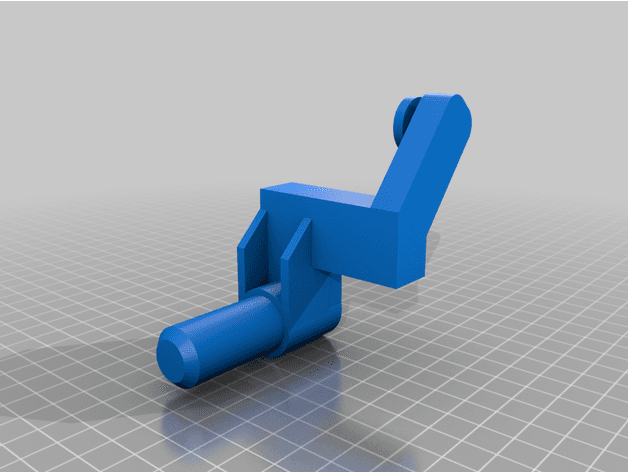

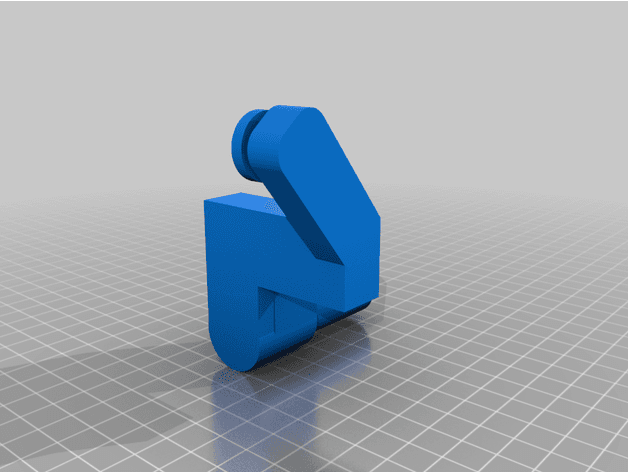

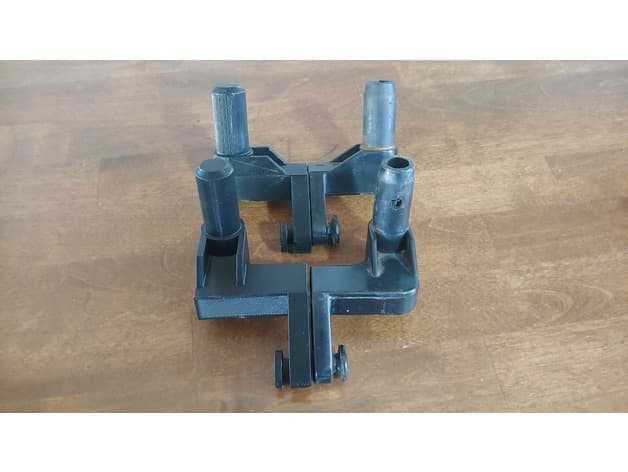

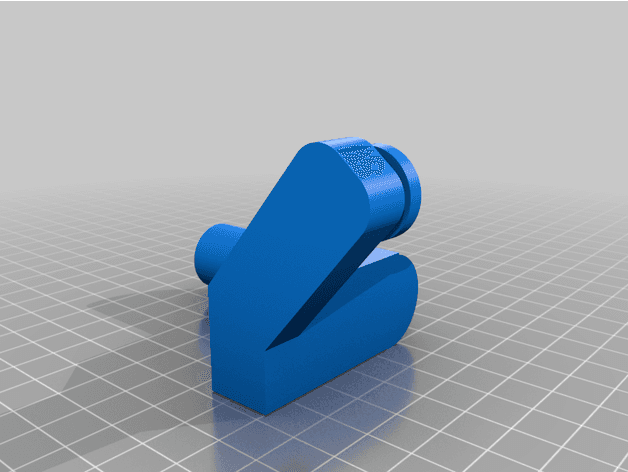

Four-piece left- and right-hand replacement set for the discontinued soft-top bow ends. Physical photographs compare the printed parts with the originals and show the assembly positioned on the body rail.
