Soft-Top Rail Slides

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYBody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Soft-Top Rail Slides
OEM: —
APPLICATION: Wrangler YJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0731QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-0731

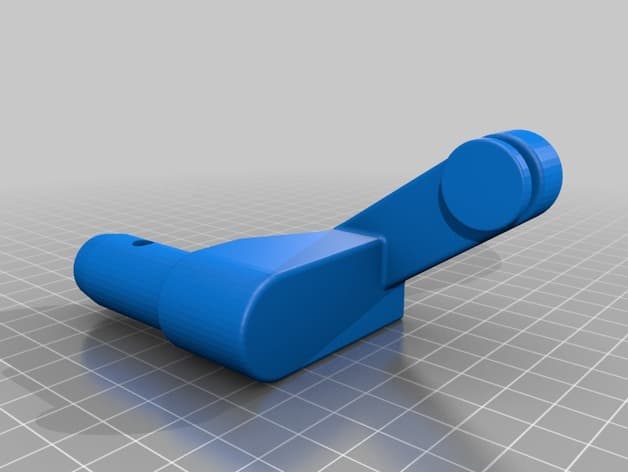

[01]Rear_Left_RailSlide.STLRear_Left_RailSlide.STL.STL
[02]Rear_Right_RailSlide.stlRear_Right_RailSlide.stl.STL
[03]Bounding box111.733 × 100.917 × 49.018 mm
[04]Volume88,373.733 mm³

Field notes

BY WES YEAGLEY (AZTECENGINEER)

Left- and right-hand replacements for the break-prone plastic soft-top rail pins or sliders used on 1991 vehicles. Both original downloadable meshes are included.
