Soft-Top Tailgate-Bar Sleeve

TPU1 FILECC-BYBody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Soft-Top Tailgate-Bar Sleeve
OEM: —
APPLICATION: Wrangler TJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0745QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

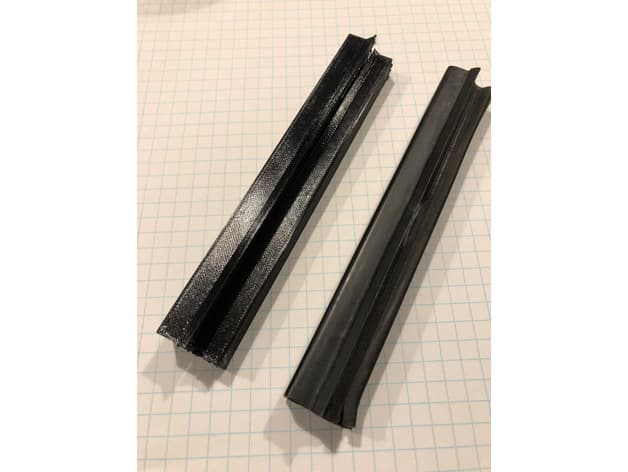

PLATE 01 / 05No caption recorded

Build sheet

MAN-0745

[01]tail_gate_bar_sleeve_v8.stltail_gate_bar_sleeve_v8.stl.STL
[02]Bounding box144.000 × 20.400 × 18.753 mm
[03]Volume20,827.939 mm³

Field notes

BY SCOTT HARTOG (RSHARTOG)

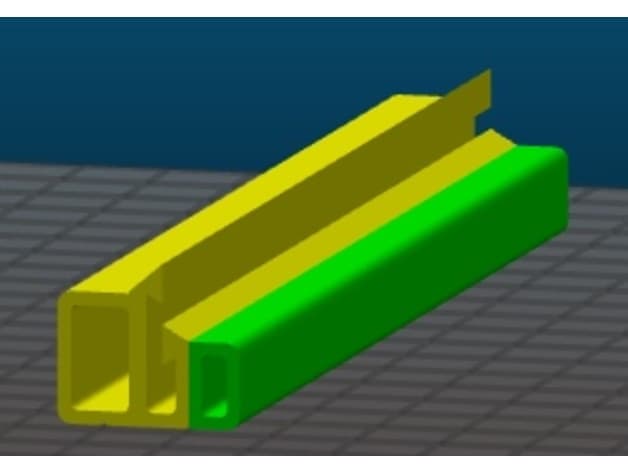

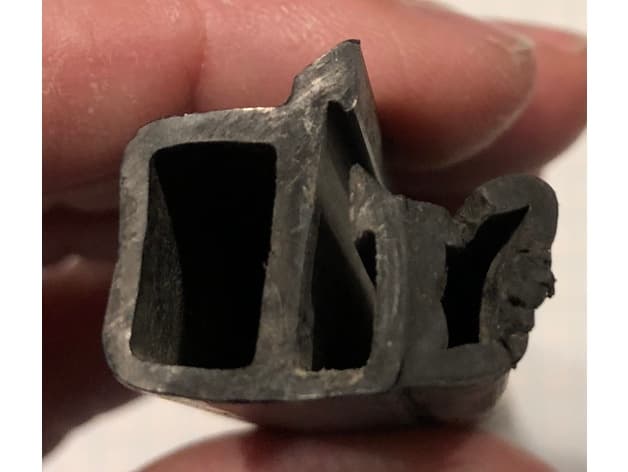

Flexible replacement sleeve for either end of the TJ soft-top tailgate bar. The creator modeled the combined rubber-and-plastic original as a single TPU part.

View original source ↗
