Steel-Wheel Center Cap

ABS · Nylon · PETG1 FILEPublic DomainExterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Steel-Wheel Center Cap
OEM: —
APPLICATION: Wrangler JK

Loading 3D viewer...

CARGO ID · CJ-3D / 0796QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

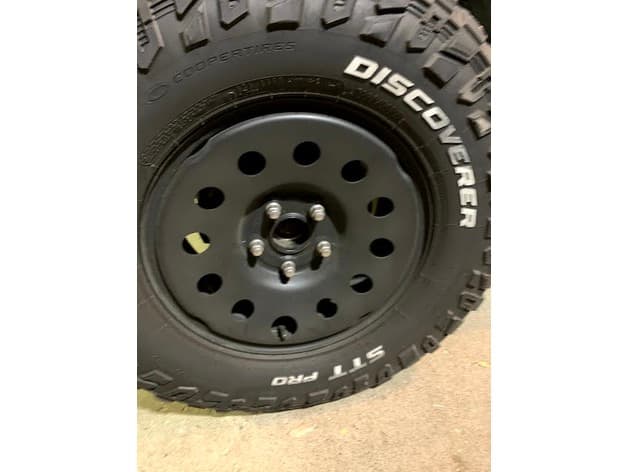

PLATE 01 / 02No caption recorded

Build sheet

MAN-0796

[01]cap_jk_steel_rims_no_logo.stlcap_jk_steel_rims_no_logo.stl.STL
[02]Bounding box85.000 × 85.000 × 22.500 mm
[03]Volume33,492.397 mm³

Field notes

BY JORGE CASTANO (JOEANCA)

Push-fit center cap for Wrangler JK steel wheels with an approximately 65 mm center bore and 84 mm outer face. This entry uses the creator's plain, no-logo geometry.
