Sun-Visor Pivot Reinforcement

ABS · Nylon · PETG1 FILECC-BYInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Sun-Visor Pivot Reinforcement
OEM: —
APPLICATION: Wrangler JL

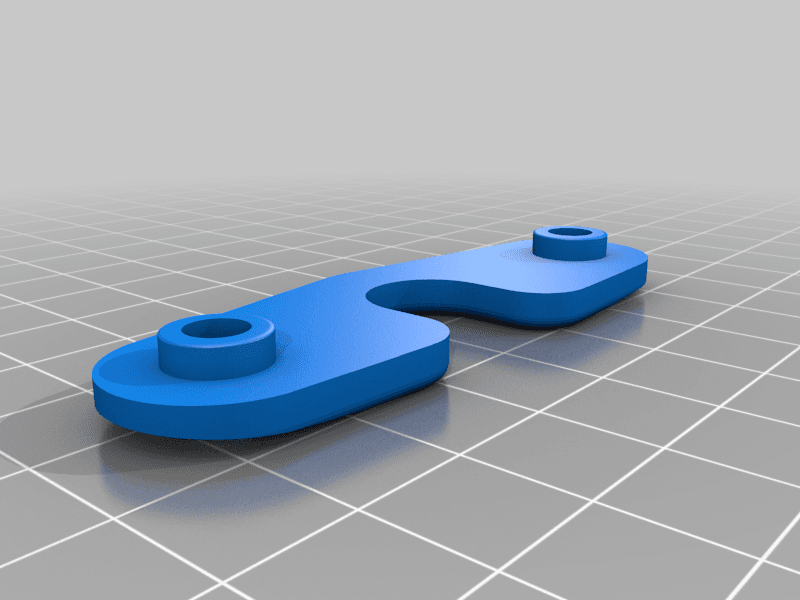

Loading 3D viewer...

CARGO ID · CJ-3D / 0824QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

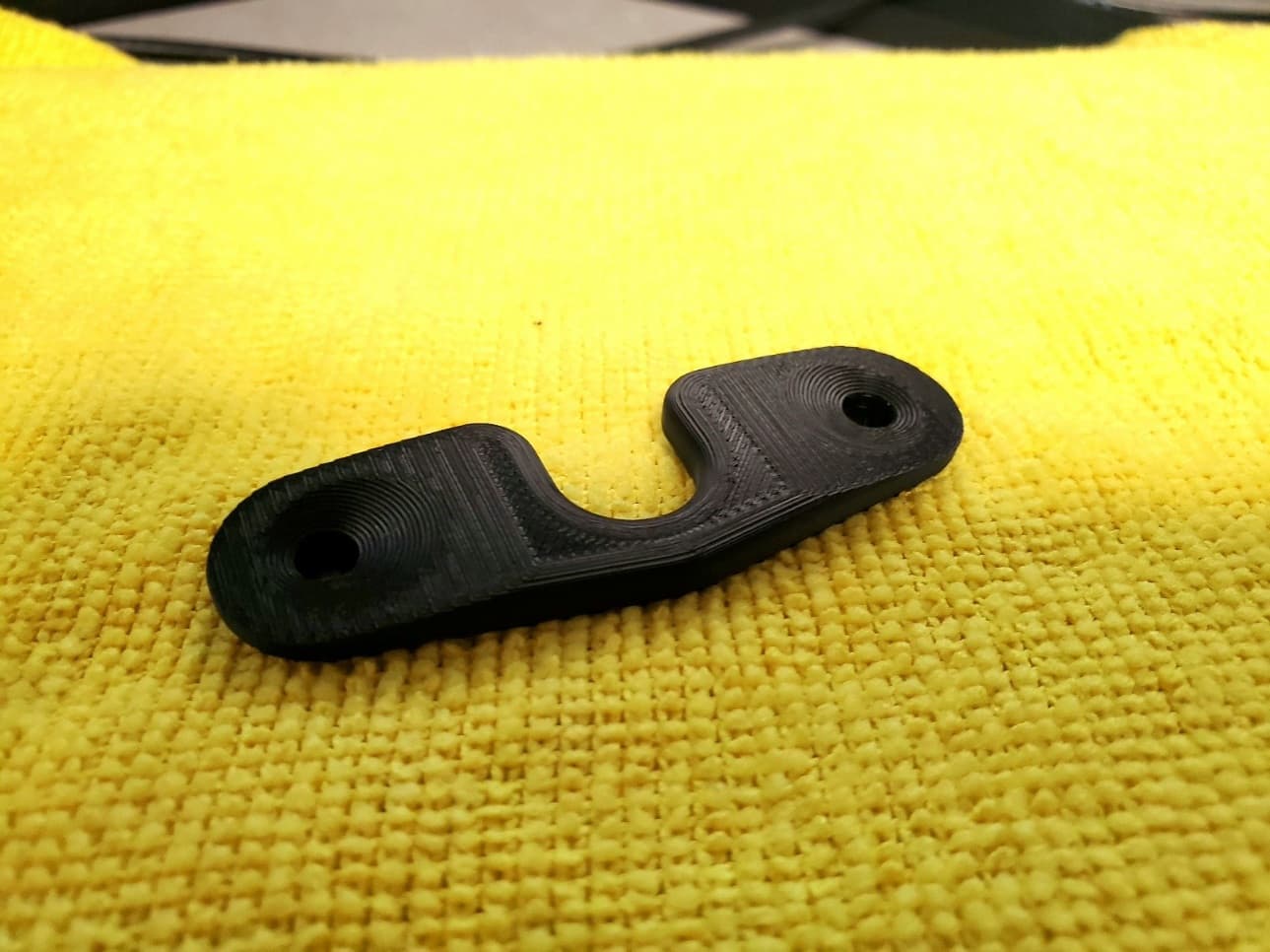

PLATE 01 / 03No caption recorded

Build sheet

MAN-0824

[01]Jeep_JL_Visor_Fix.stlJeep_JL_Visor_Fix.stl.STL
[02]Bounding box68.560 × 22.300 × 6.557 mm
[03]Volume3,626.316 mm³

Field notes

BY BRYCE BEYLER (BBEYLER)

Reinforcement plate for the failure-prone Wrangler JL sun-visor pivot. This revised remix adds beveled screw holes, tapered ends, and locating extrusions in the original holes.
