Sunroof Floor-Drain Plug

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYBody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Sunroof Floor-Drain Plug
OEM: —
APPLICATION: Grand Cherokee WJ / WG

Loading 3D viewer...

CARGO ID · CJ-3D / 0945QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

5 PLATES

PLATE 01 / 05No caption recorded

Build sheet

MAN-0945

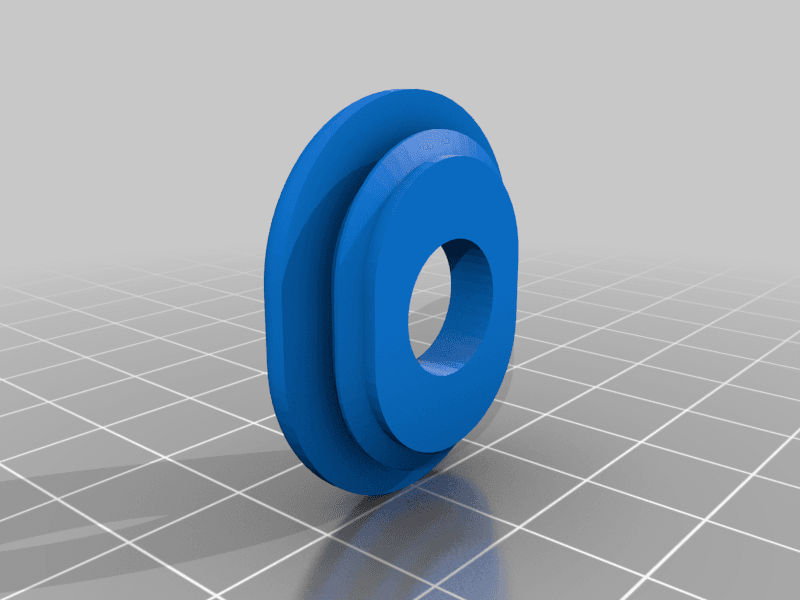

[01]Main.STLMain.STL.STL

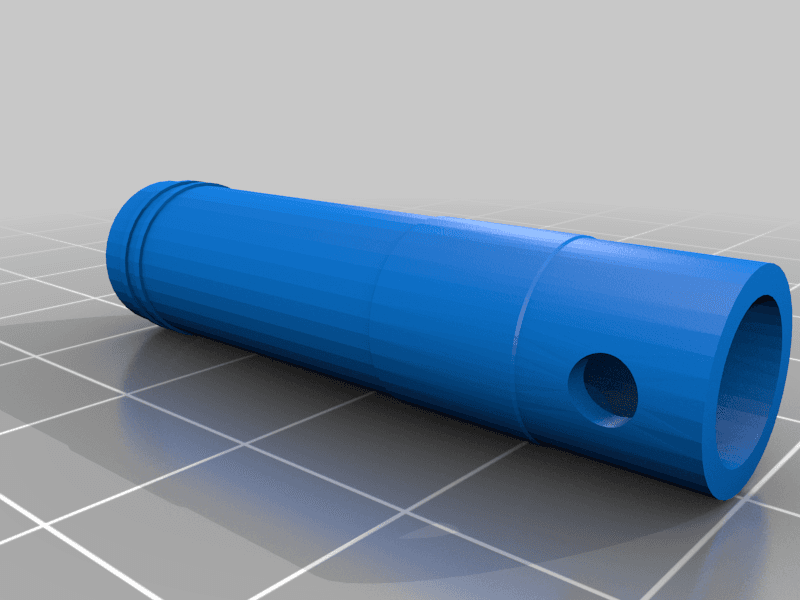

[02]pipe.STLpipe.STL.STL
[03]Bounding box39.000 × 35.991 × 9.982 mm
[04]Volume3,612.633 mm³

Field notes

BY MATAN RACHMANI (MATAN)

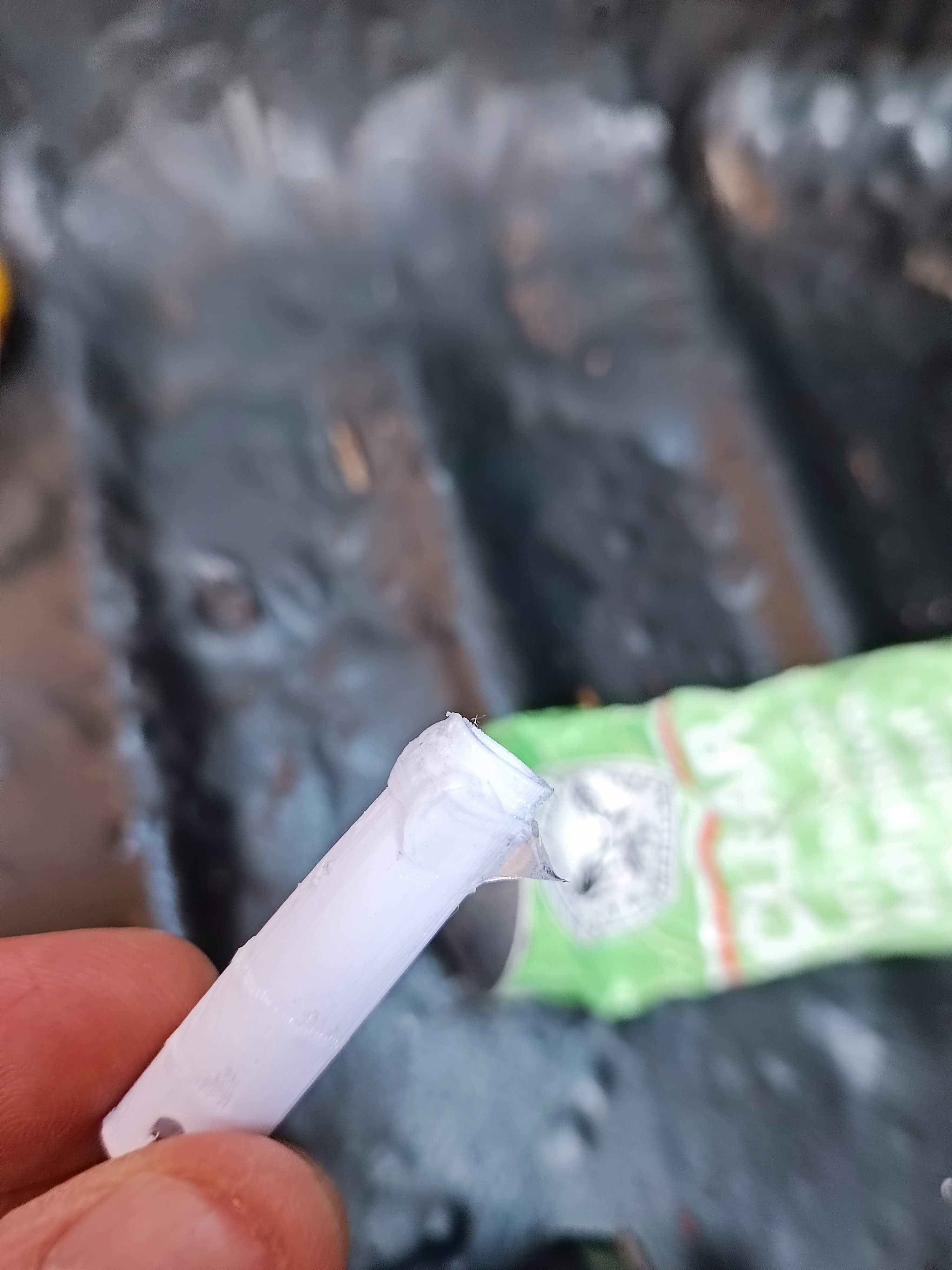

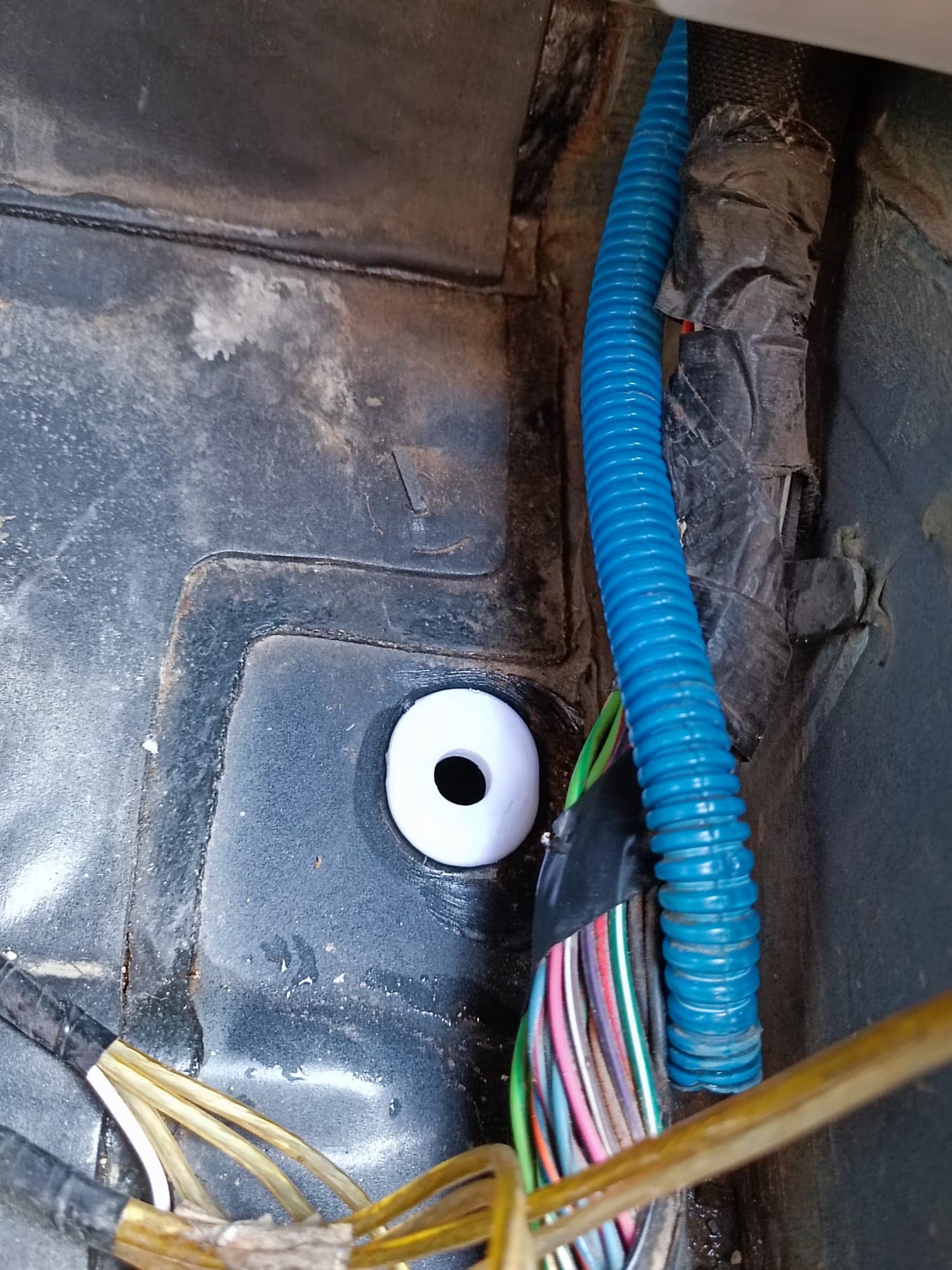

Two-piece floor plug and hose fitting for the Grand Cherokee WJ and WG sunroof drain. The source documents installation with RTV or silicone sealing at the body joint.
