Tail-Lamp Bulb-Socket Repair Insert

ABS · Nylon1 FILECC-BY-NCLights

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Tail-Lamp Bulb-Socket Repair Insert
OEM: —
APPLICATION: Grand Cherokee WJ / WG

Loading 3D viewer...

CARGO ID · CJ-3D / 0942QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

3 PLATES

PLATE 01 / 03No caption recorded

Build sheet

MAN-0942

[01]Jeep.stlJeep.stl.STL
[02]Bounding box247.300 × 54.000 × 6.600 mm
[03]Volume28,874.815 mm³

Field notes

BY GRIGORIY SEMCHENKOV (GERGI)

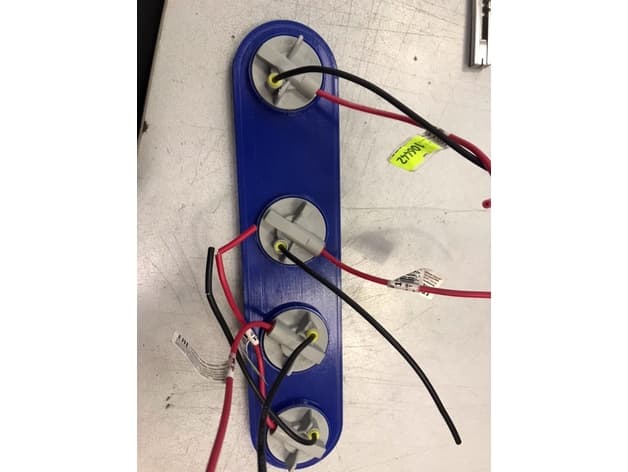

Repair insert for a failed P21W bulb socket in Grand Cherokee WJ and WG tail-lamp circuit boards. The source documents the replacement cartridge and wired installation.
