Tailgate Trim Clip-Base Repair

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYInterior

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Tailgate Trim Clip-Base Repair
OEM: —
APPLICATION: Cherokee / Liberty XJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0838QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

2 PLATES

PLATE 01 / 02No caption recorded

Build sheet

MAN-0838

[01]Jeep_Boot_Clip.stlJeep_Boot_Clip.stl.STL
[02]Jeep_Boot_Clip_Short.stlJeep_Boot_Clip_Short.stl.STL
[03]Bounding box29.985 × 21.000 × 17.500 mm
[04]Volume4,974.769 mm³

Field notes

BY ANTHONY PROFFITT (BOXBURN)

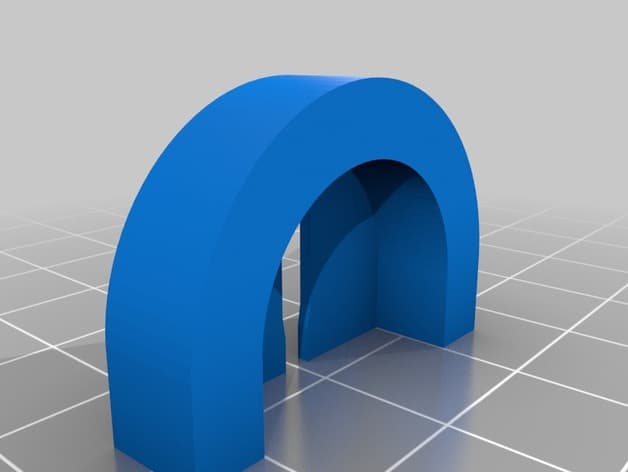

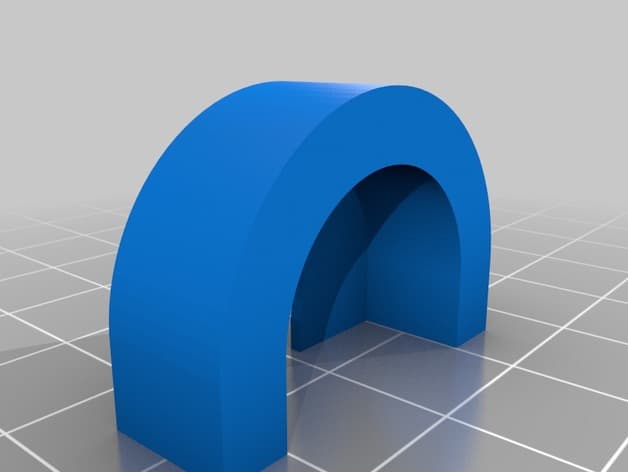

Glue-on repair bases for broken trim-clip mounts on the Cherokee XJ tailgate cover. Standard and short bases are included for the different factory positions.
