Taillight Housing and Separator

ABS · Nylon · PETGMULTI-PART2 FILESCC-BYLights

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Taillight Housing and Separator
OEM: —
APPLICATION: CJ-5, CJ-7, CJ-8 Scrambler, Wrangler YJ

Loading 3D viewer...

CARGO ID · CJ-3D / 0711QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

1 PLATE

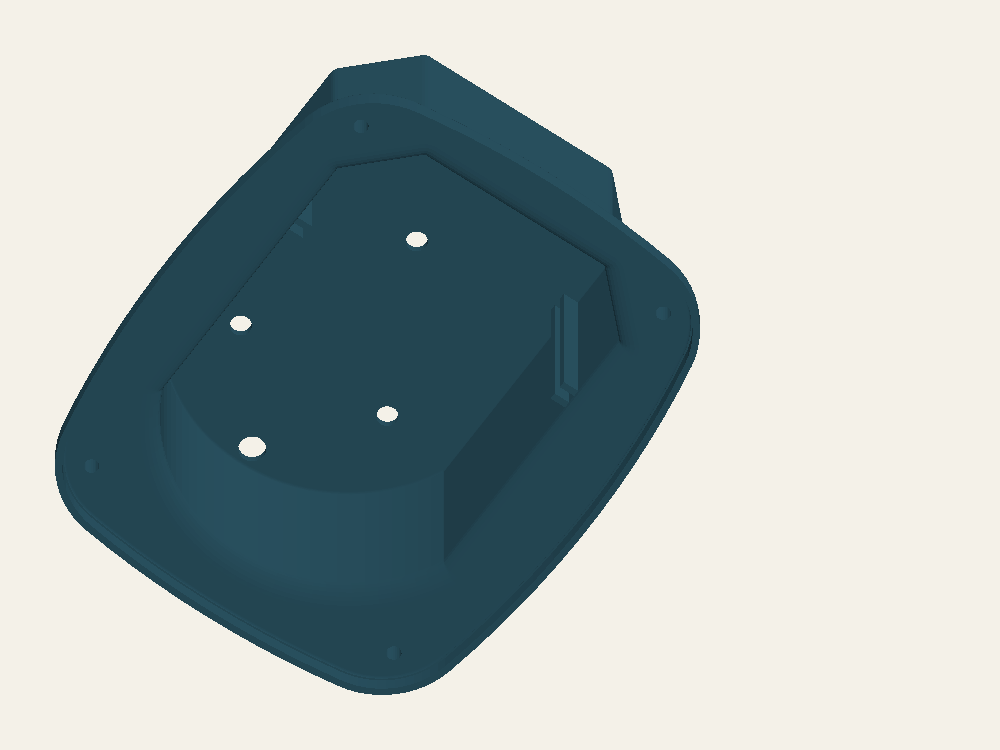

PLATE 01 / 01No caption recorded

Build sheet

MAN-0711

[01]Jeep_Taillight_Housing_v3.stlJeep_Taillight_Housing_v3.stl.STL
[02]Jeep_taillight_seperator_v1.stlJeep_taillight_seperator_v1.stl.STL
[03]Bounding box170.180 × 145.676 × 69.225 mm
[04]Volume132,347.705 mm³

Field notes

BY CHUCK BRYANT (3RDPIG)

Printable rear lamp housing with deeper lens-screw holes, a wiring opening and internal rails for the included red-and-clear lens separator. The source recommends heat-resistant material and provides both printable parts.

View original source ↗
