Three-Quarter-Inch Grille Marker-Light Mount

ABS · Nylon1 FILECC-BYLights

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Three-Quarter-Inch Grille Marker-Light Mount
OEM: —
APPLICATION: Gladiator JT

Loading 3D viewer...

CARGO ID · CJ-3D / 0972QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0972

[01]PrintNewJeep_Gladiator_grill_light_mount_Copy_Copy_new.stlPrintNewJeep_Gladiator_grill_light_mount_Copy_Copy_new.stl.STL
[02]Bounding box1.750 × 1.191 × 1.108 mm
[03]Volume0.356 mm³

Field notes

BY KYLE PENDLEY (KPENDLEY)

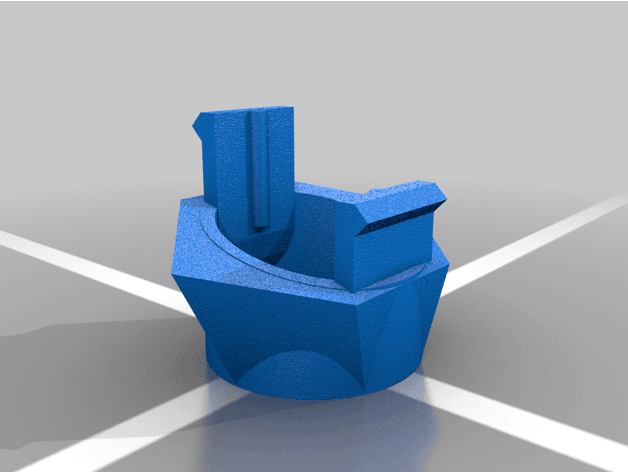

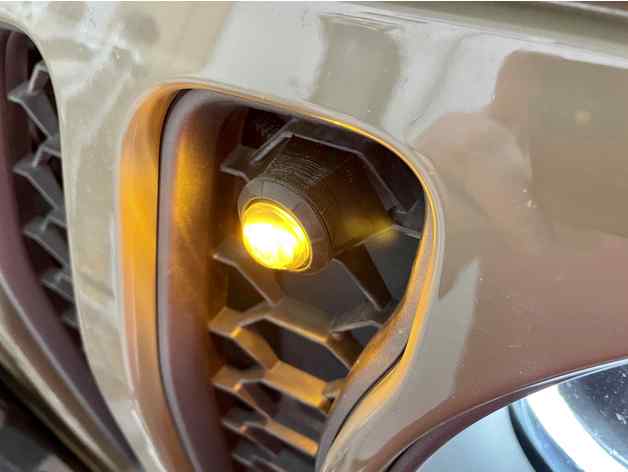

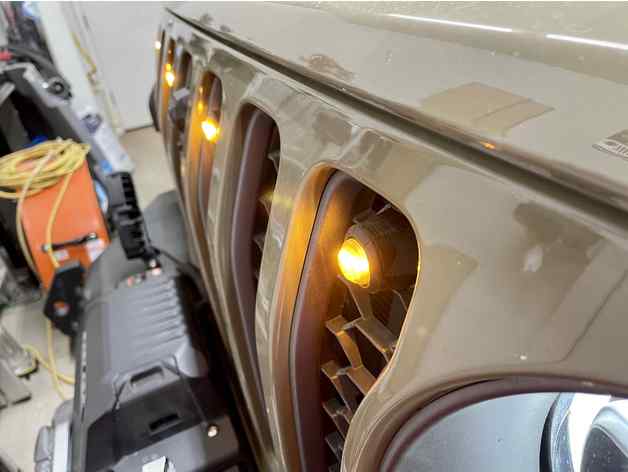

Contoured mount for round three-quarter-inch marker lights in the Gladiator JT grille. The geometry was developed specifically for the Gladiator grille rather than the Wrangler version, and the source documents the installed lights.
