Trail-Rail Spring Cleat

ABS · NylonMULTI-PART2 FILESCC-BYBody

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Trail-Rail Spring Cleat
OEM: —
APPLICATION: Gladiator JT

Loading 3D viewer...

CARGO ID · CJ-3D / 0973QTY 2 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0973

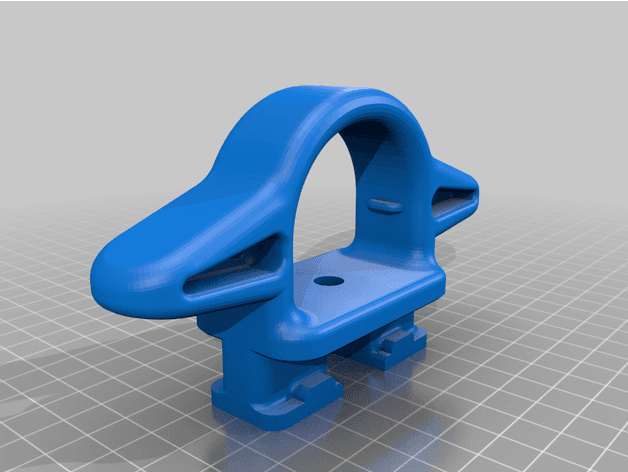

[01]Jeep_Cleat_Body.stlJeep_Cleat_Body.stl.STL

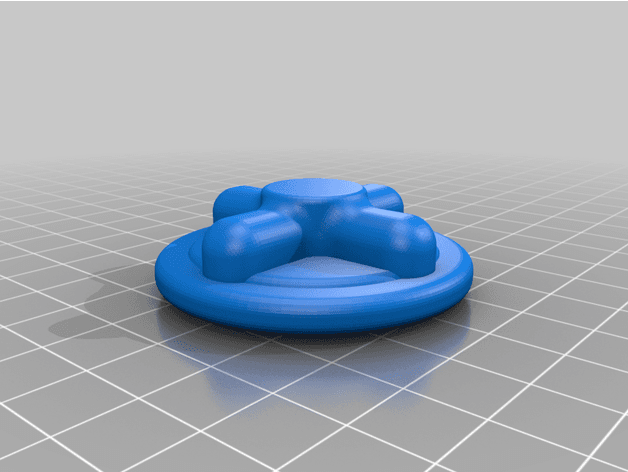

[02]Jeep_Cleat_hand_crank.stlJeep_Cleat_hand_crank.stl.STL
[03]Bounding box177.721 × 74.000 × 38.250 mm
[04]Volume90,236.895 mm³

Field notes

BY C. S. (STURM451)

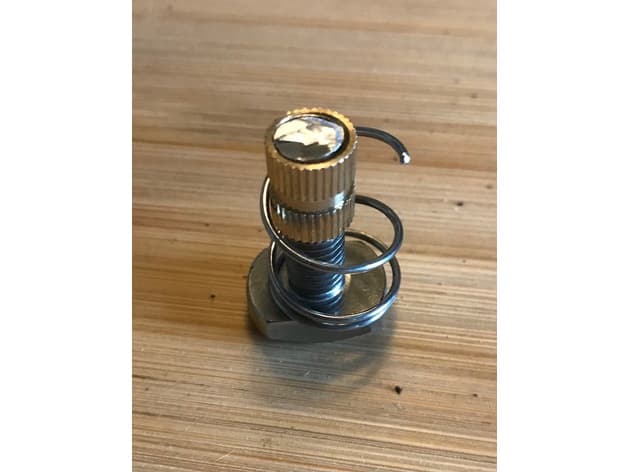

Two-piece spring-loaded cargo cleat for the Gladiator JT Trail Rail system. The body indexes into the rail grooves and uses an M8 T-nut, threaded insert, and compression spring documented by the creator.

View original source ↗
