Two-Door Sport-Bar Ghost-Antenna Mount

ABS · Nylon · PETG1 FILECC-BY-NCElectrical

DA FORM 2410 — COMPONENT RECORDFIG 3-14

NOMENCLATURE: Two-Door Sport-Bar Ghost-Antenna Mount
OEM: —
APPLICATION: Wrangler JL

Loading 3D viewer...

CARGO ID · CJ-3D / 0812QTY 1 · STLHANDLE · NO SUPPORTS

Field photographs

4 PLATES

PLATE 01 / 04No caption recorded

Build sheet

MAN-0812

[01]Antenna_Mount_Final_v4.stlAntenna_Mount_Final_v4.stl.STL
[02]Bounding box111.993 × 95.000 × 40.007 mm
[03]Volume23,347.069 mm³

Field notes

BY JEF MITCHELL (1FJEF)

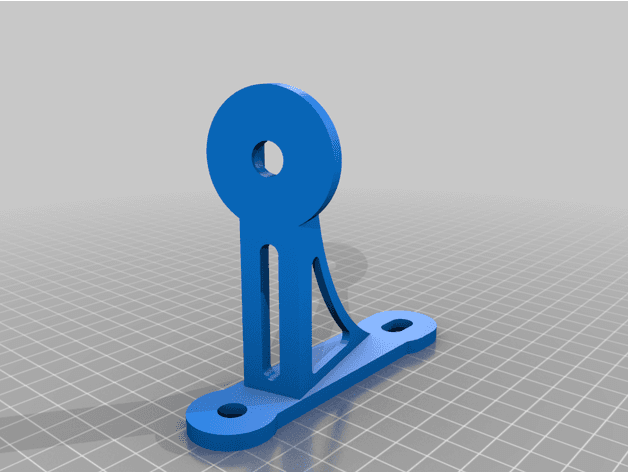

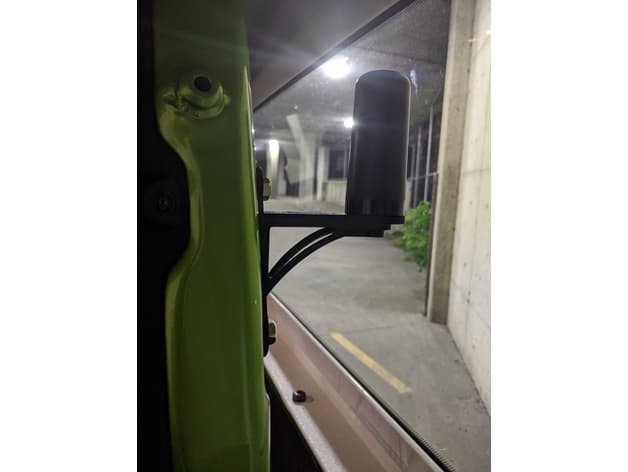

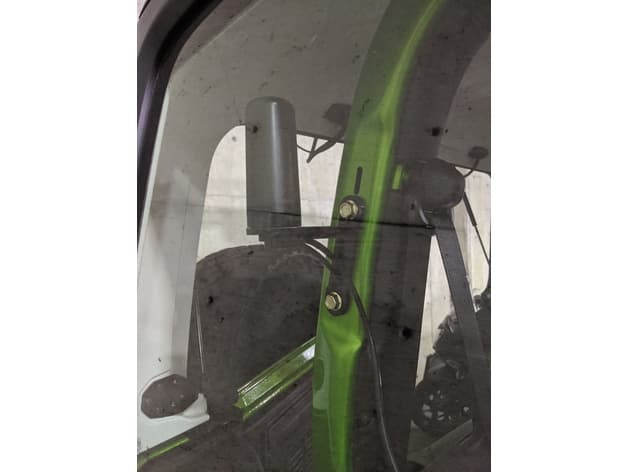

No-drill mount for a Midland MXTA25 low-profile antenna on the internal sport-bar fastener of a two-door 2018-and-newer Wrangler JL. The location is shared with soft-top hardware.
